Figure 4

From: Global monitoring of volcanic SO2 degassing with unprecedented resolution from TROPOMI onboard Sentinel-5 Precursor

Figure 4

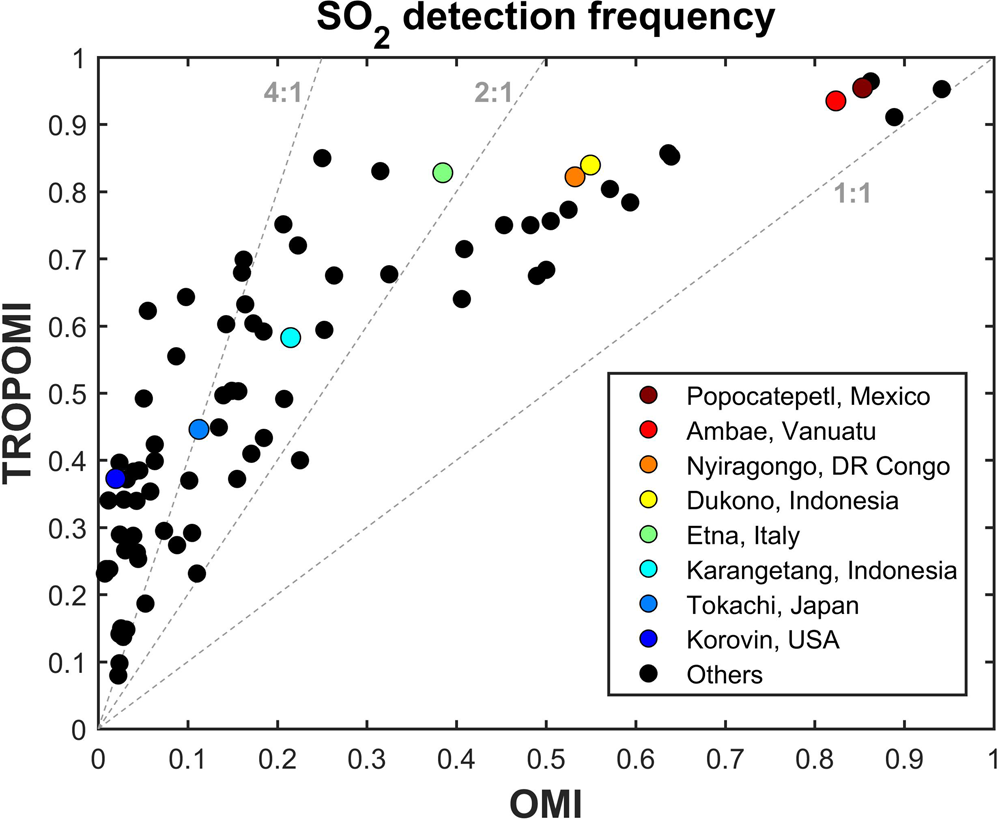

SO2 daily detection frequency derived from TROPOMI and OMI data from November 2017 to July 2018, following the method described in section 2. The points correspond to the degassing volcanoes (based on the global inventory)28 active during this measurement period. Several volcanoes are identified by a color code. The dashed lines correspond to 1:1, 2:1 and 4:1 lines.
