Figure 3
From: Analysis of the Antigenic Properties of Membrane Proteins of Mycobacterium tuberculosis

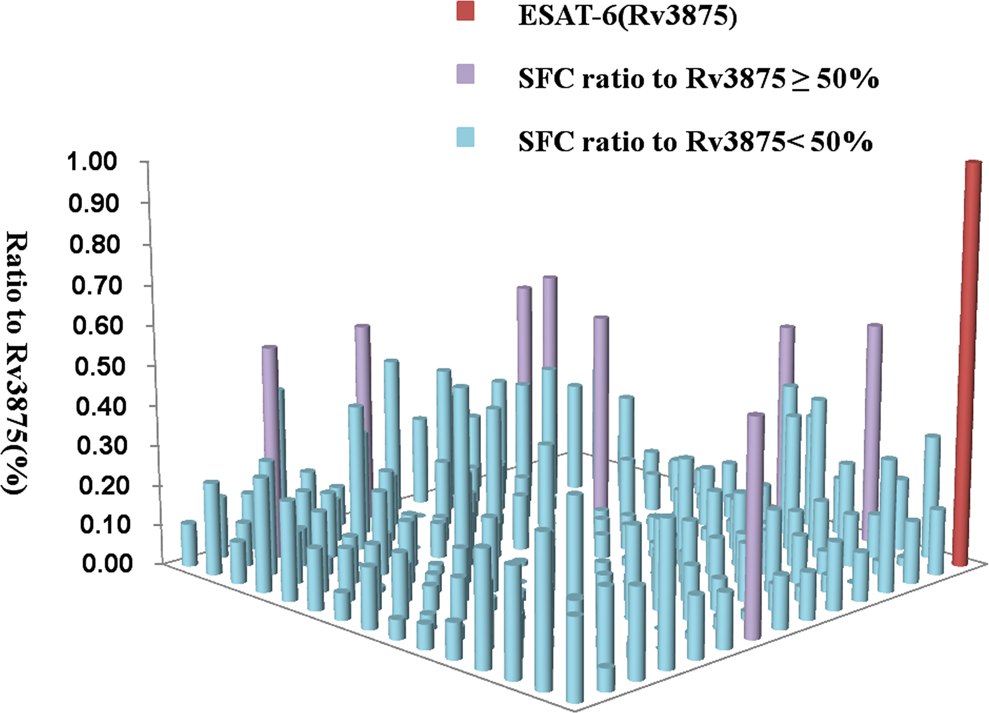

TB antigen-specific IFN-γ-producing SFC reaction ratio of purified membrane proteins. The heights and colors of the columns indicate the reactivity of each protein, as evaluated based on the ratio of the reactivity between the tested protein and commercial containing kit Rv3875. The red column represents the commercial kit Rv3875, for which the ratio set to 1. The light blue columns represent proteins with a ratio below 50%. The purple columns represent the proteins with a ratio higher than 50%.
