Figure 5

From: Histopathological and Ultrastructural Changes after Electroporation in Pig Liver Using Parallel-Plate Electrodes and High-Performance Generator

Figure 5

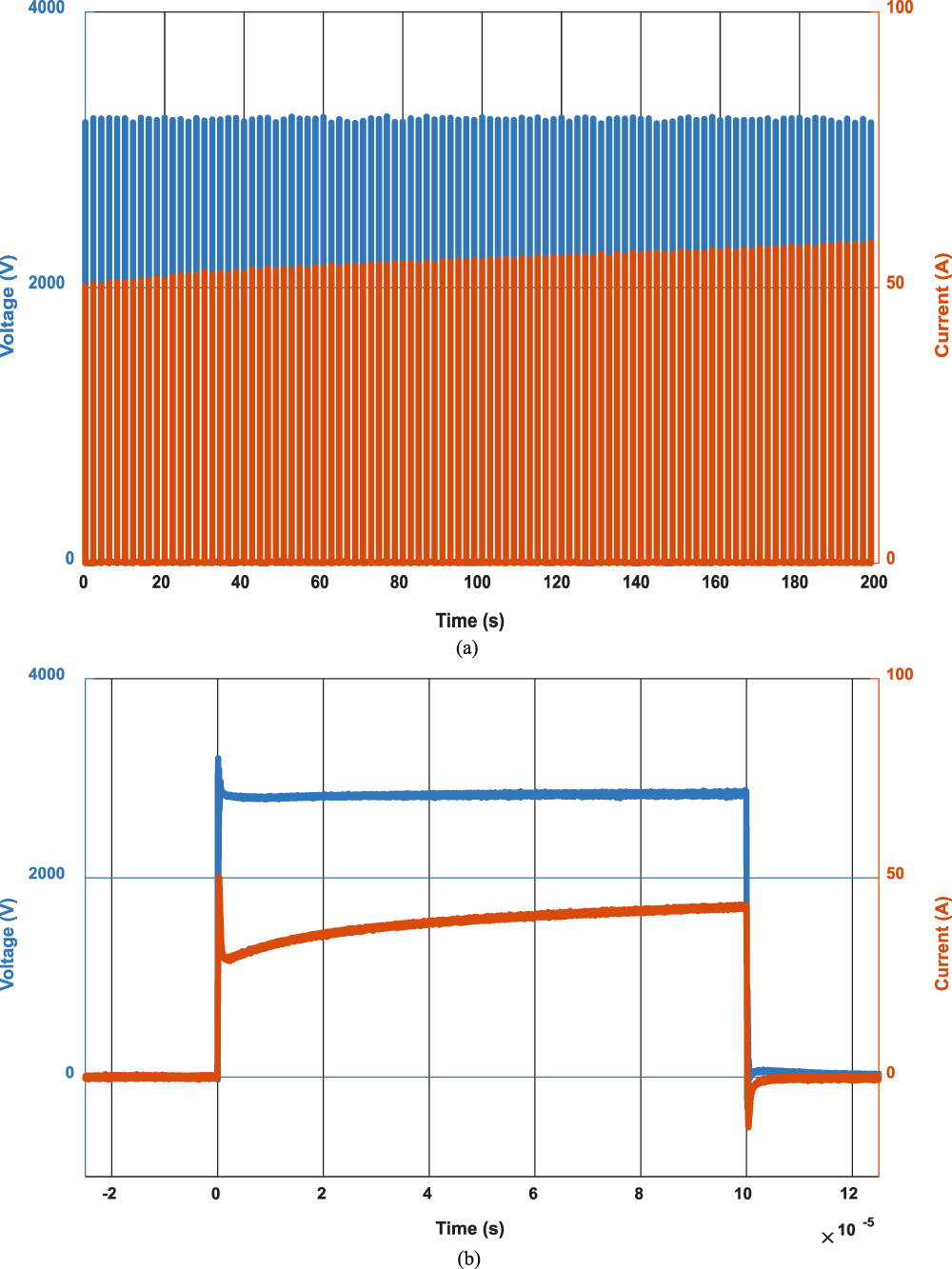

Main current and voltage waveforms during IRE treatment. Current and conductivity increases due to cell permeabilization. Full treatment train of pulses comprising 100 pulses of 100 µs (a) and detail of one pulse (b). Voltage polarity is changed between pulses and absolute values are plotted for effective representation. Besides, gap between pulses has been omitted for illustrative purposes.
