From: High-resolution atmospheric-pressure MALDI mass spectrometry imaging workflow for lipidomic analysis of late fetal mouse lungs

Figure 8

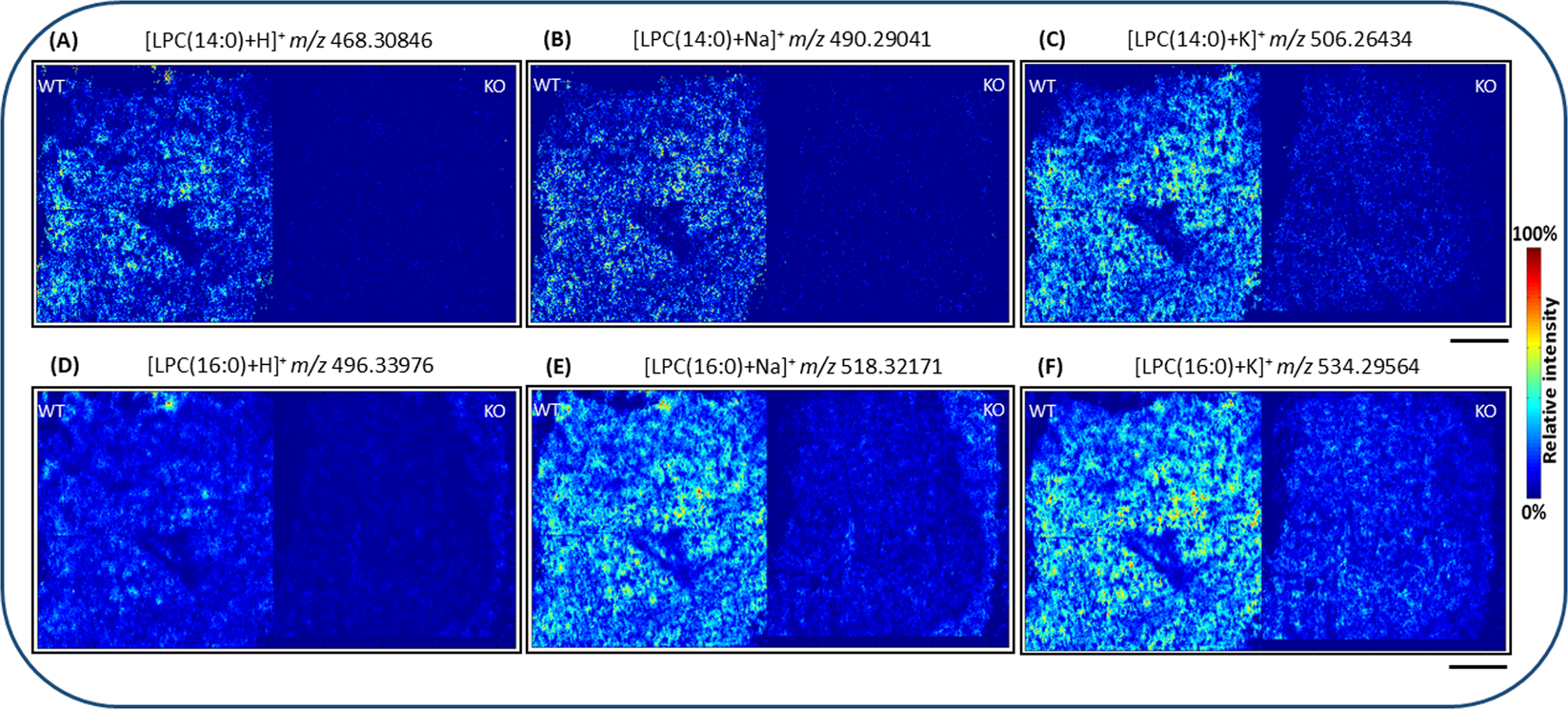

Confirmation of differential abundance of lipid species in wild type (WT) and Pex11β knockout (KO) late fetal E19 mouse lung tissue sections for various charge carriers in positive-ion mode. (A–C) Differential abundance of LPC(14:0) in WT and KO E19 mouse lung tissue. (A) [LPC(14:0) + H]+, (B) [LPC(14:0) + Na]+, (C) [LPC(14:0) + K]+. (D–F) Differential abundance of LPC(16:0) in WT and KO E19 mouse lung tissue. (D) [LPC(16:0) + H]+, (E) [LPC(16:0) + Na]+, (F) [LPC(16:0) + K]+. Scale bar 500 µm.
