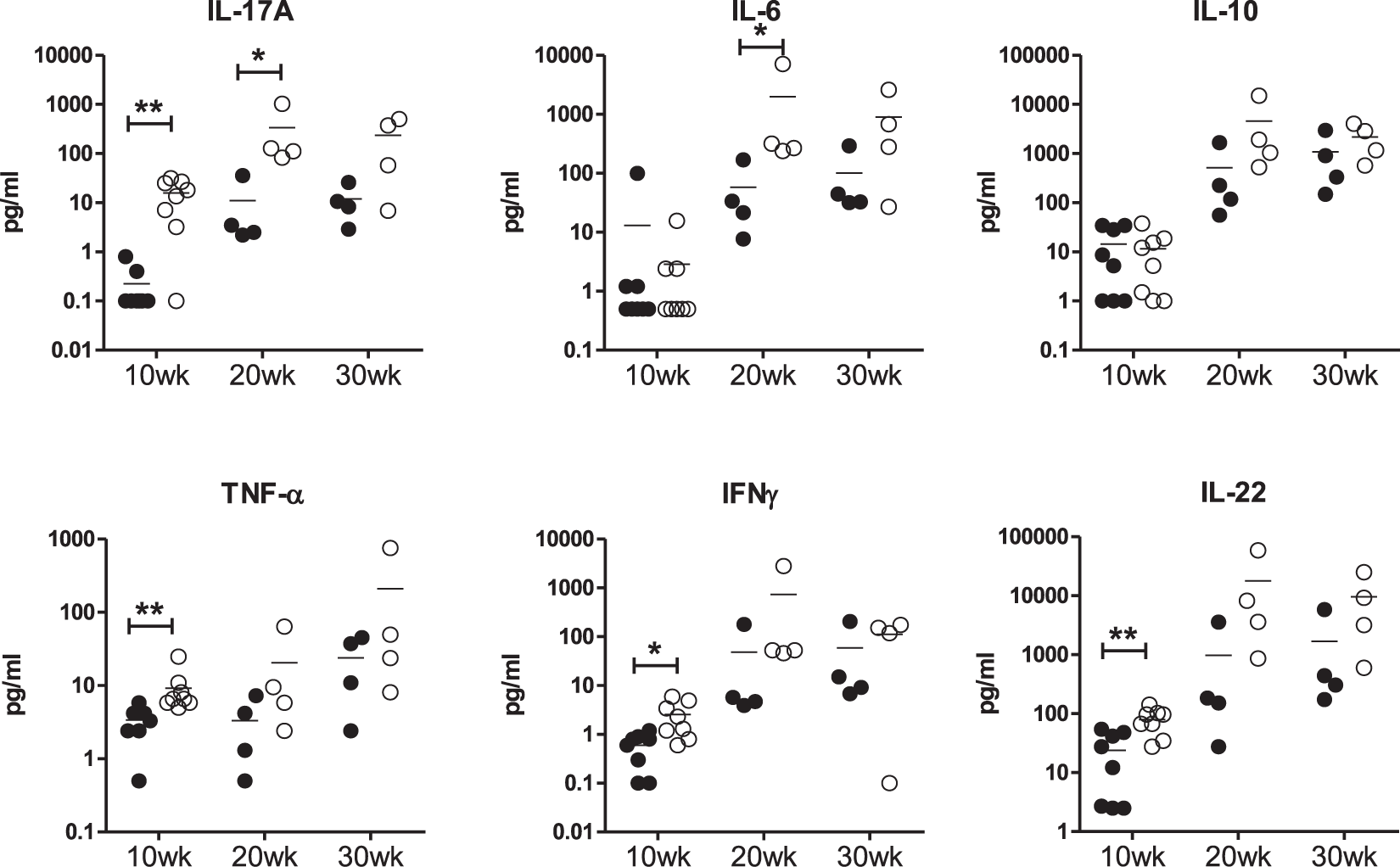

Figure 3
From: Lack of IL-17 Receptor A signaling aggravates lymphoproliferation in C57BL/6 lpr mice
IL-17A, IL-6, IL-10, TNF-α, IFN-γ, and IL-22 levels in B6/lpr and IL-17RA KO/lpr mice. Serum cytokine levels as measured by multiplex at 10, 20 and 30 weeks of age in B6.lpr (black circles) and IL17RA KO/lpr (open circles); *p < 0.05; **p < 0.01.
