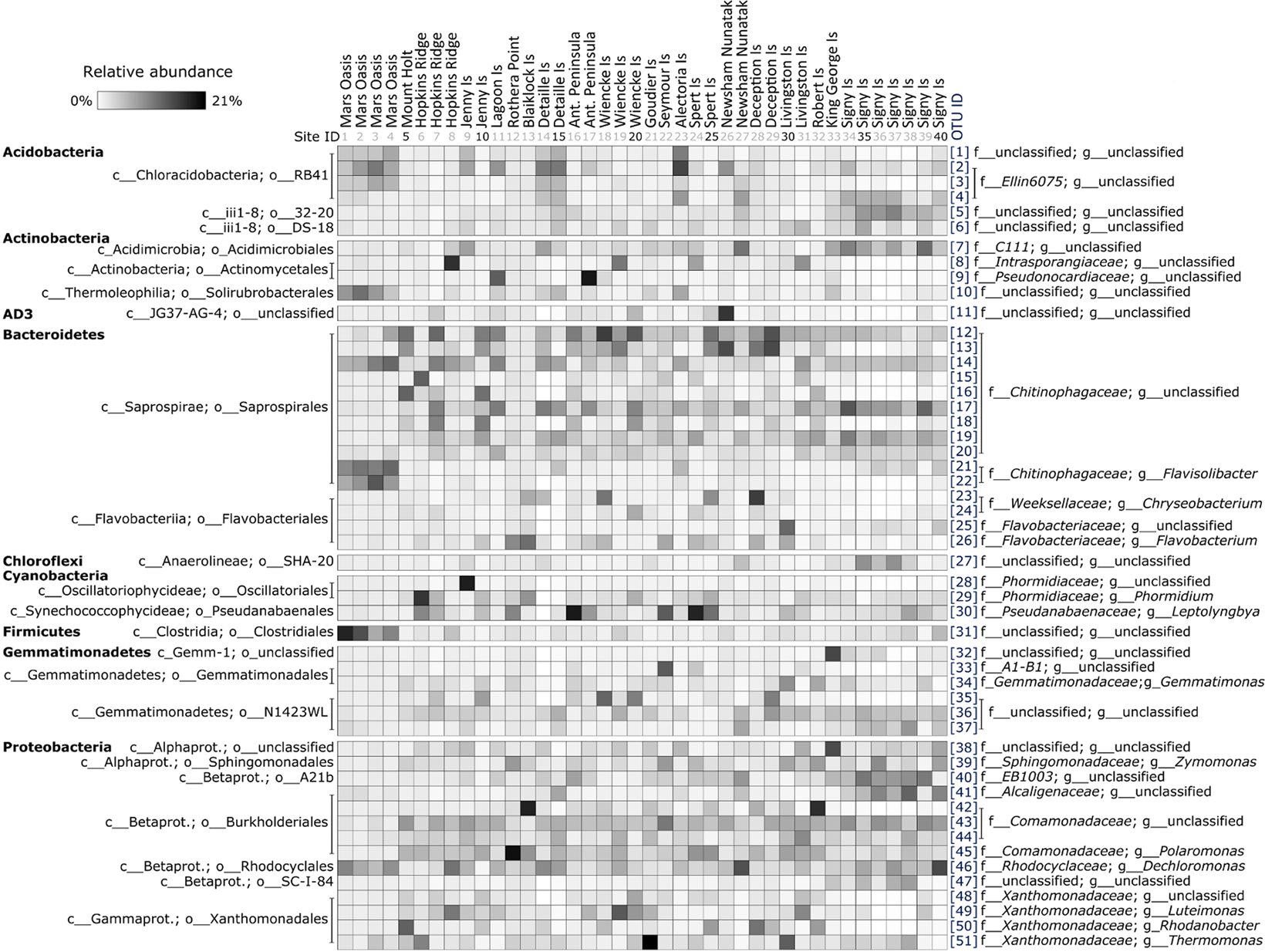

Figure 5
From: Soil bacterial diversity is positively associated with air temperature in the maritime Antarctic
Heatmap illustrating the abundances of the dominant (>5%) bacterial taxa recorded in each soil as well as those that were significantly associated with the predictor variables shown in Table 2.
