From: Elucidating the Contribution of Skeletal Muscle Ion Channels to Amyotrophic Lateral Sclerosis in search of new therapeutic options

Figure 3

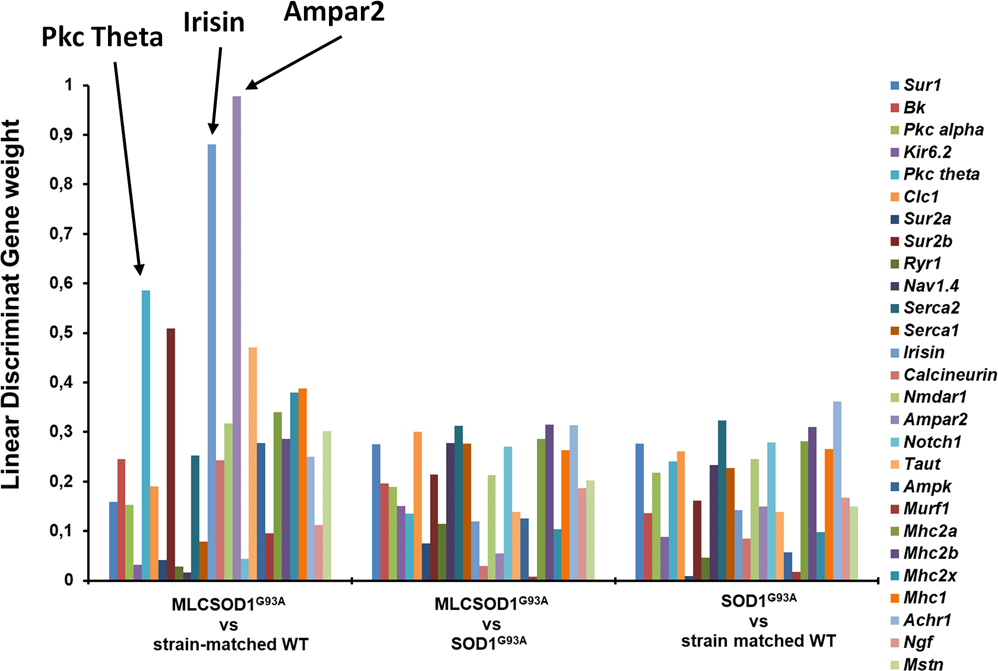

PCA/LDA Discriminant Genes. Barplots of Linear Discriminant loading weights of each gene in the three PCA-LDA analysis performed. Each bar represents the weight of the variable in order to discriminate between: (on the left) MLC/SOD1G93A vs. strain matched WT, (in the middle) MLC/SOD1G93A vs. SOD1G93A and (on the right) SOD1G93A vs. strain-matched WT PCA scores. On the right, a legend showing the colors-code to identify the mRNA LD gene loading weight of the target genes. Arrows indicates the most affected genes.
