Figure 4

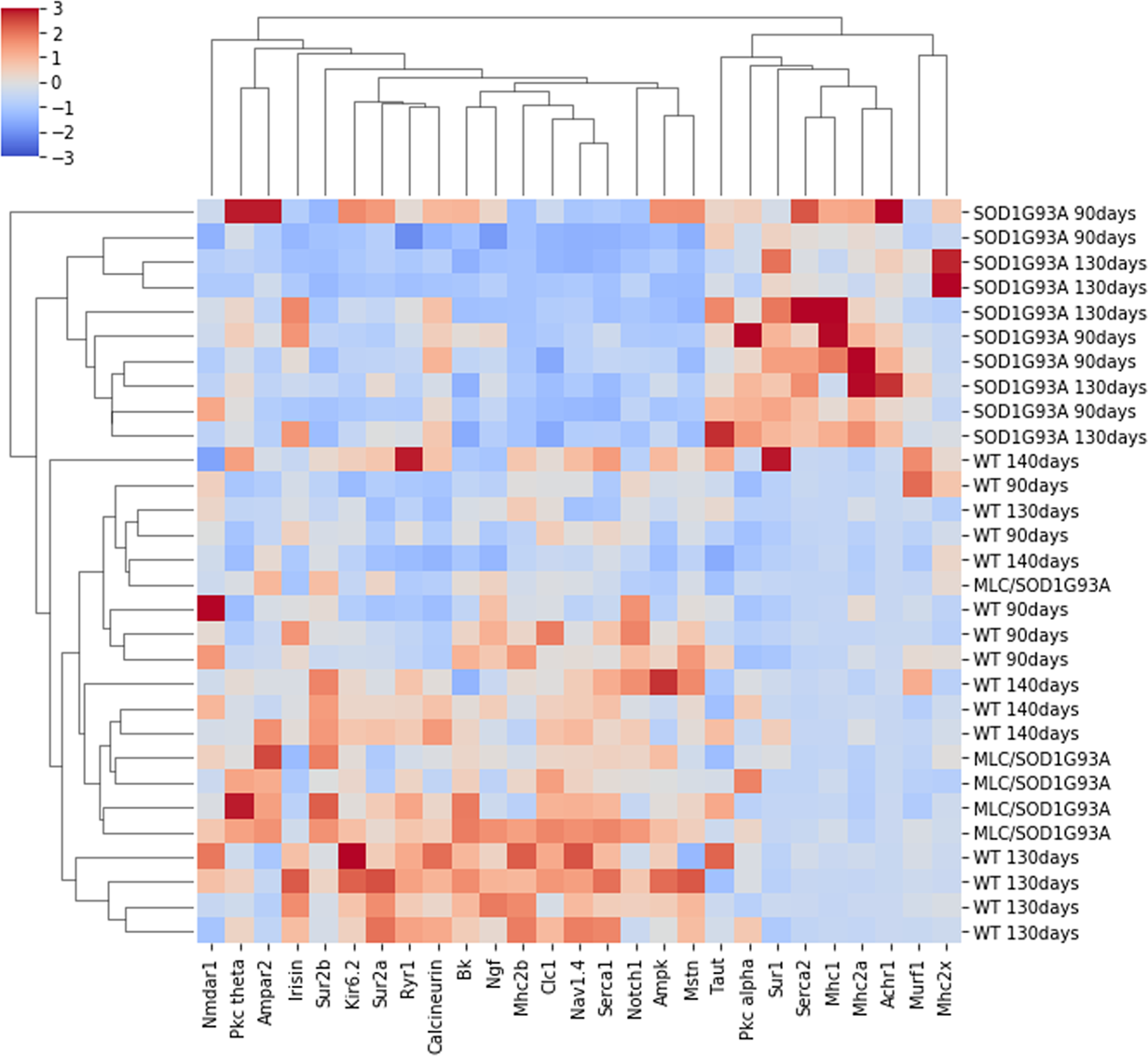

Hierarchical agglomerative clustering of gene expression data. Heatmap of unsupervised machine learning algorithm to perform clusterization of muscles based on gene expression levels. TA muscles and mRNA levels segregated into two principal clusters also in this case, as showed by hierarchical dendrograms of rows and columns. Each square represents the standardized gene expression level normalized with β-actin housekeeping gene in TA muscle of target genes. The columns report target genes, rows report the analysed muscles. Genes and muscles are sorted by hierarchical agglomerative clustering algorithm. Plotted data consists of the entire dataset of animals (SOD1G93A, MLC/SOD1G93A and their strain-matched WT as control).
