Figure 4

From: 3D Muography for the Search of Hidden Cavities

Figure 4

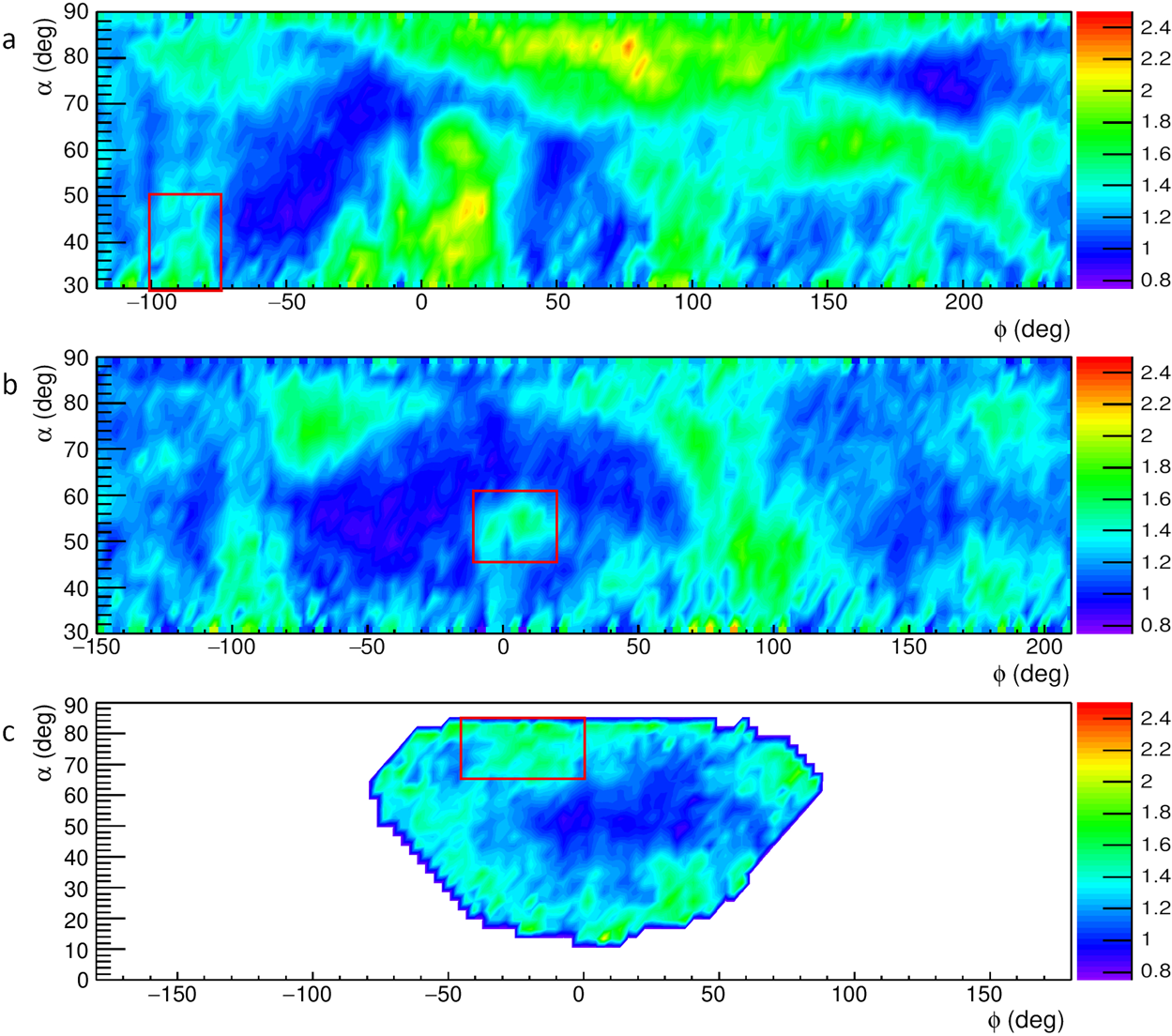

a–c The relative transmission R(α, ϕ, ρ) observed at the locations A, B and C, respectively, in the reference systems of the corresponding muon trackers. The angular regions associated to the hidden cavity are indicated with rectangles. The plot was obtained using the software ROOT and the smoothing tool Contour4 was applied.
