From: 3D Muography for the Search of Hidden Cavities

Figure 5

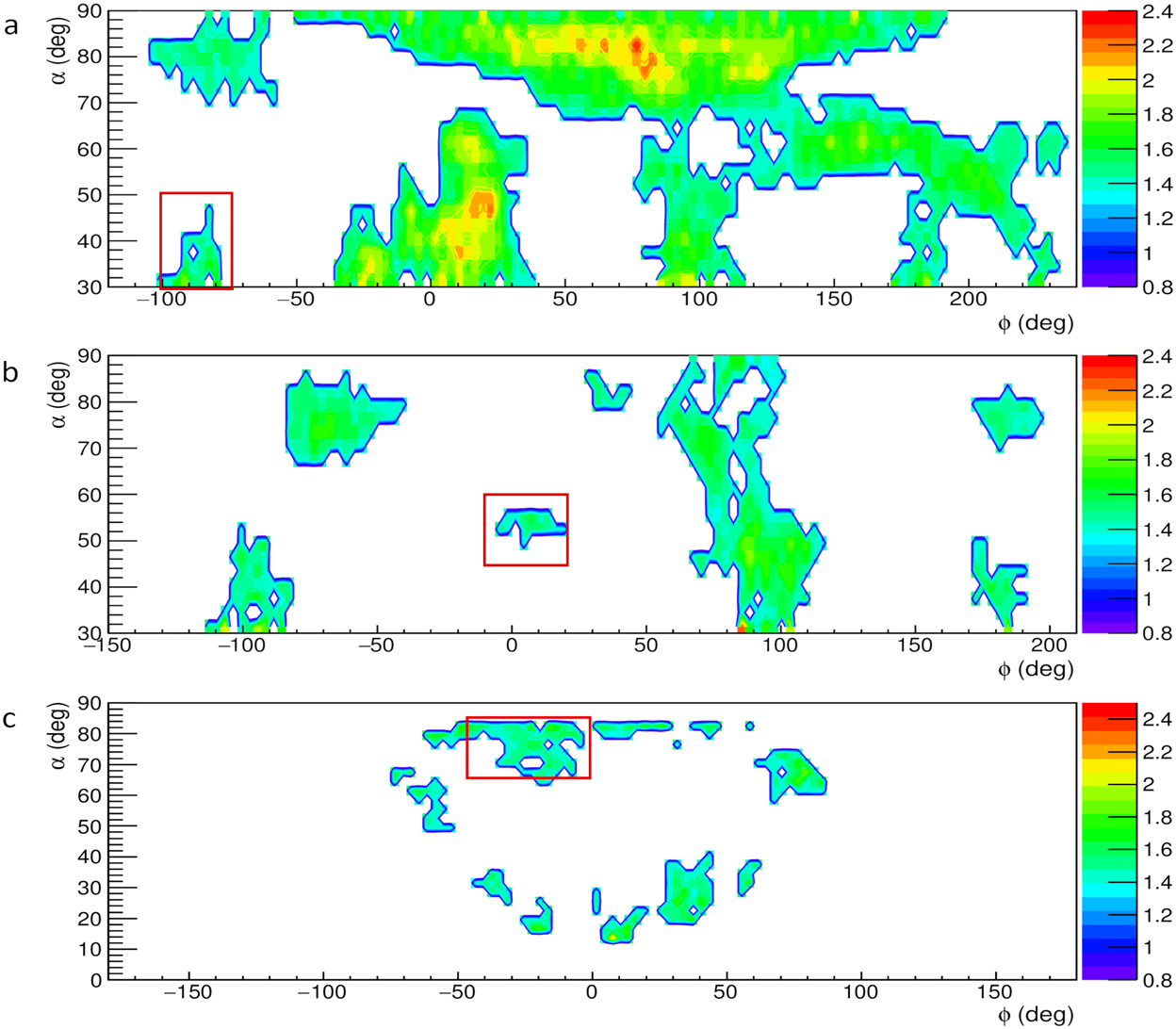

Regions in the map of the relative transmission R(α, ϕ, ρ) selected by the clustering algorithm as corresponding to a cavity. The angular regions associated to the hidden cavity are indicated with rectangles. The plot was obtained using the software ROOT and the smoothing tool Contour2 was applied.
