From: 3D Muography for the Search of Hidden Cavities

Figure 9

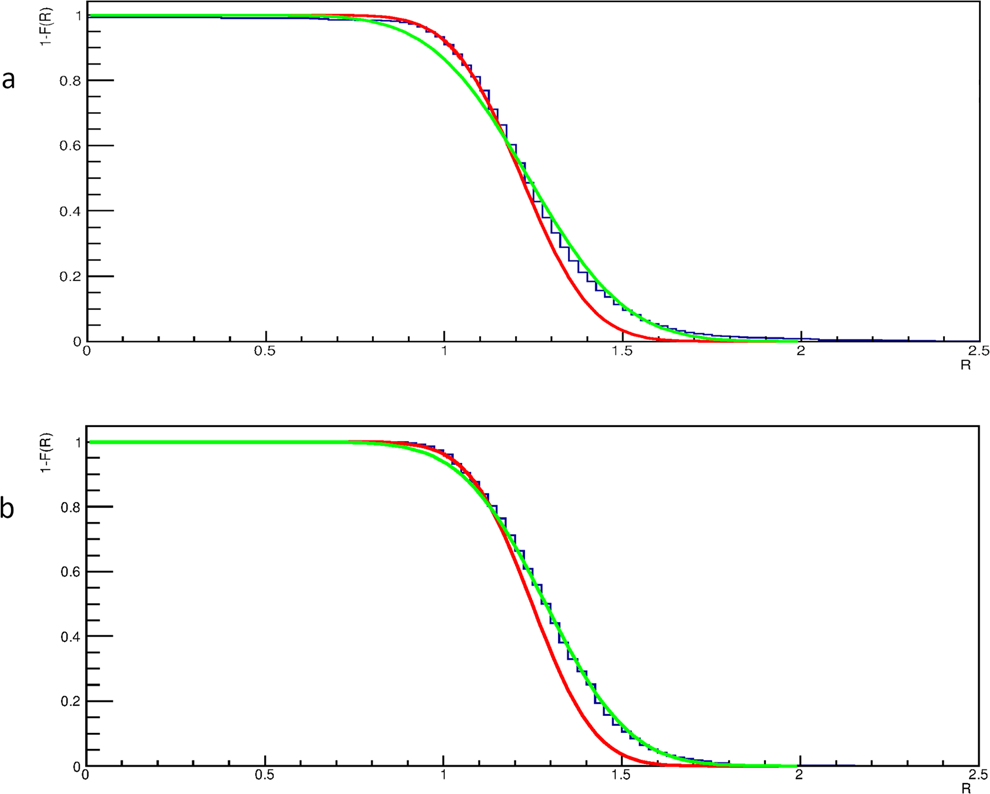

Fits of the cumulative distributions of the relative transmission R of the muography taken with the MU-RAY muon tracker at the location B (a) and with the MIMA muon tracker (b). The distributions are fitted by two Gaussian components, one corresponding to transmission through rock without voids (red) and another corresponding to trasmission through rock with voids (green).
