Figure 3
From: Automated tracking of label-free cells with enhanced recognition of whole tracks

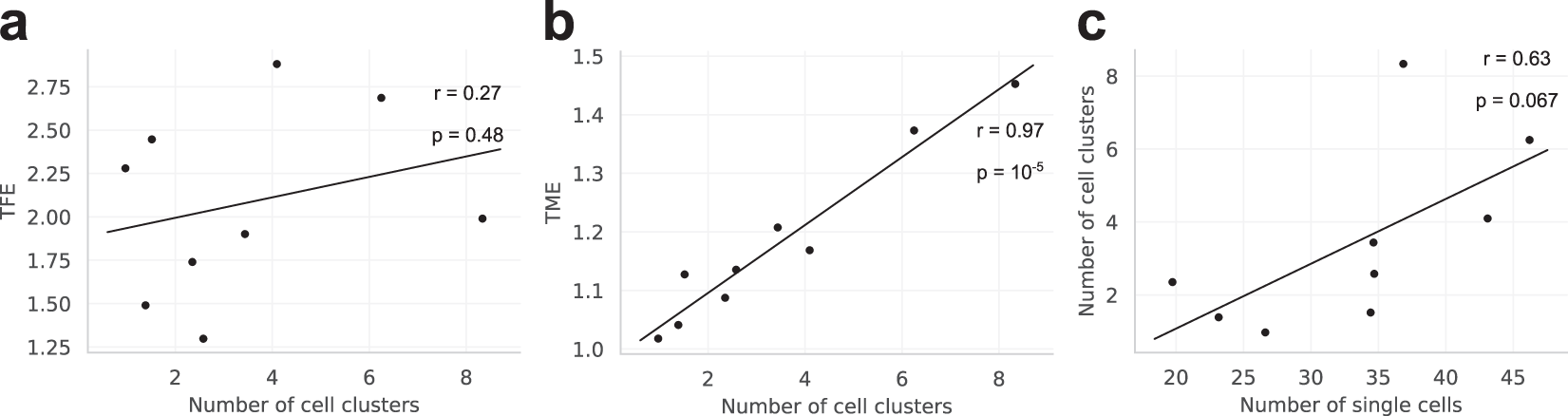

Tracking errors of AMIT-v1 in relation to the number of cells and cell clusters in the field of view. (a) The track fragmentation error (TFE) does not significantly increase with the number of cell clusters; (b) the track merging error (TME) is highly correlated with the number of cell clusters; (c) the number of cell clusters increases with the number of single cells in the field of view. The numbers of cells and cell clusters in the field of view are computed as the average over all time frames for each of the nine videos. The parameters r and p denote the Pearson correlation coefficient and the p-value for the Pearson correlation coefficient, respectively.
