Figure 2
From: ZeBRα a universal, multi-fragment DNA-assembly-system with minimal hands-on time requirement

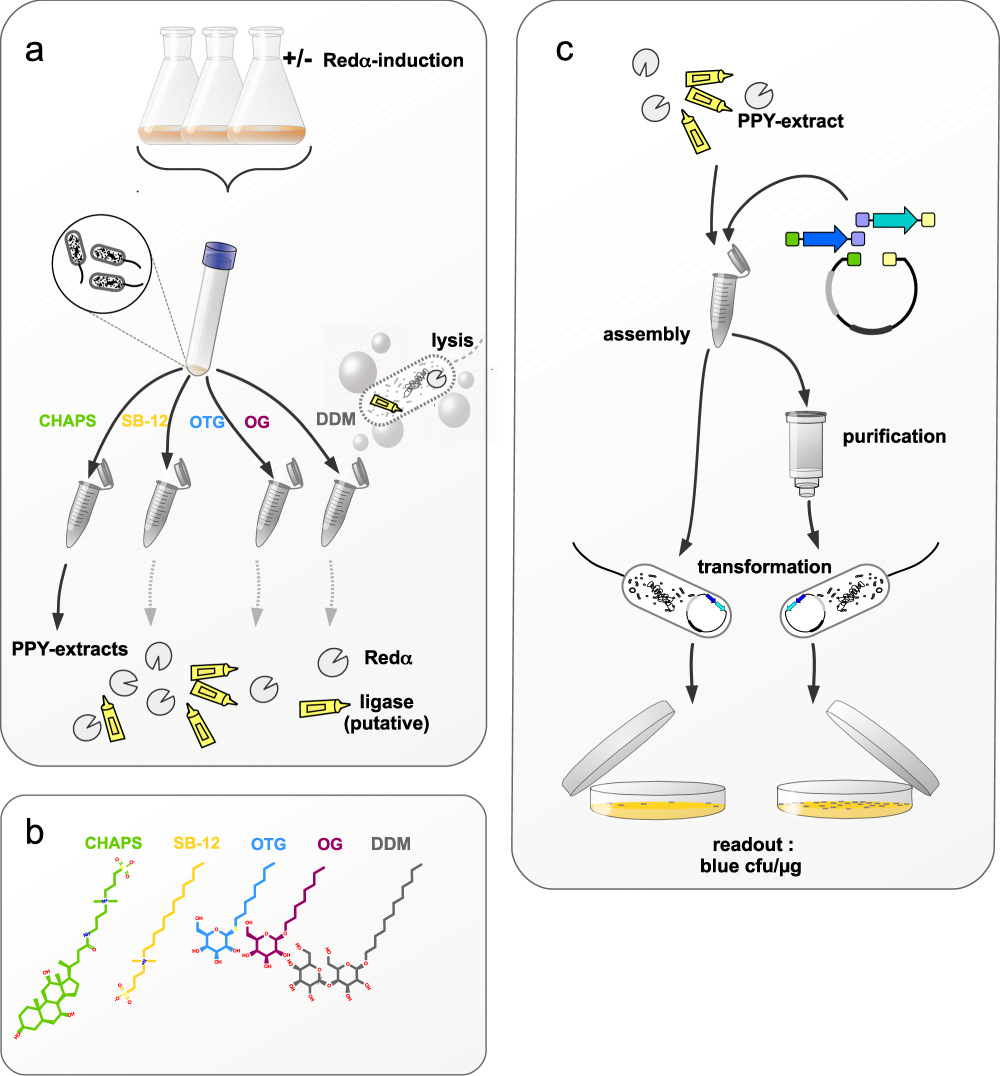

Strategy for SLiCE optimization and evaluation. (a) Flow chart of the optimization process for generating a recombinogenic E. coli lysate. The PPY strain is a DH10B-derivative used to prepare the recombinogenic cell lysate and expresses the coding sequences for Redαβγ. The extracts, derived from arabinose autoinduced PPY-cells, were compared to extracts made from non-induced PPY-cells. (b) Structure of the examined non-ionic detergents used to prepare the recombinogenic PPY-extracts, CHAPS, Sulfo-Betain (SB-12), n-Octyl-β-D-thioglucopyranosid (OTG), n-Octyl-β-D-glucopyranosid (OG) Dodecyl-β-D-maltosid (DDM). (c) PPY-extracts were tested for their recombination capacity by assembling three DNA fragments with overlapping ends, to generate a recombinant plasmid constitutively expressing a blue chromoprotein. To examine the effects detergents had on the transformation, samples were split after the assembly reaction. One part was transformed into NEB 5-alpha unpurified; the other fraction was purified by silica-column chromatography prior to transformation.
