From: Quantification of hepatic steatosis in chronic liver disease using novel automated method of second harmonic generation and two-photon excited fluorescence

Figure 2

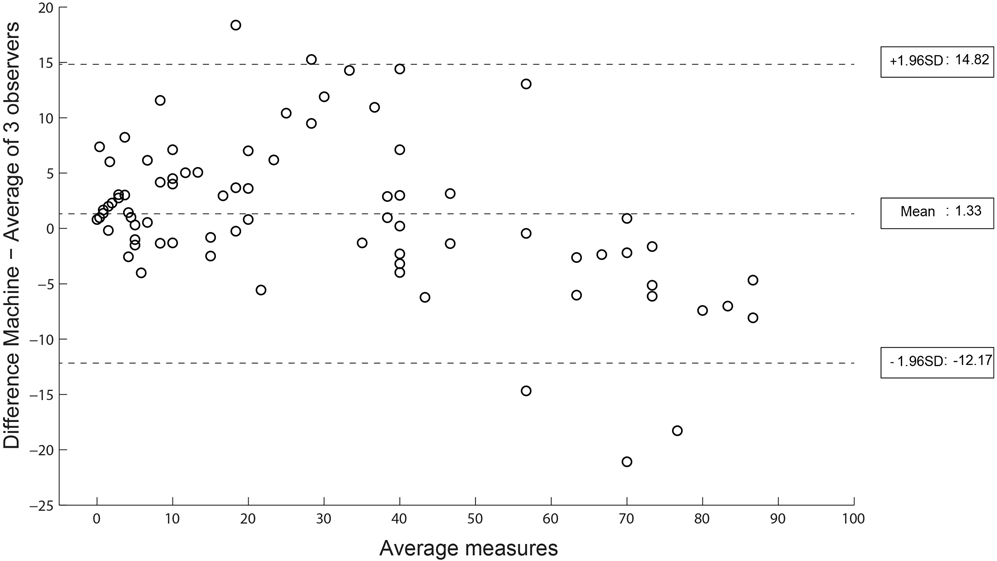

Bland-Altman plot comparing steatosis assessment using revised SHG microscopy algorithm vs. histopathologist assessment. Illustrates the improved revised Bland-Altman plot, correcting for systemic factors of discrepancies, where the mean difference between SHG and pathologist assessment of steatosis was reduced to 1.33% with a 95% confidence interval (±1.96 standard deviation) of −12.17 to 14.82%.
