Figure 1
From: Microfluidic model systems used to emulate processes occurring during soft particle filtration

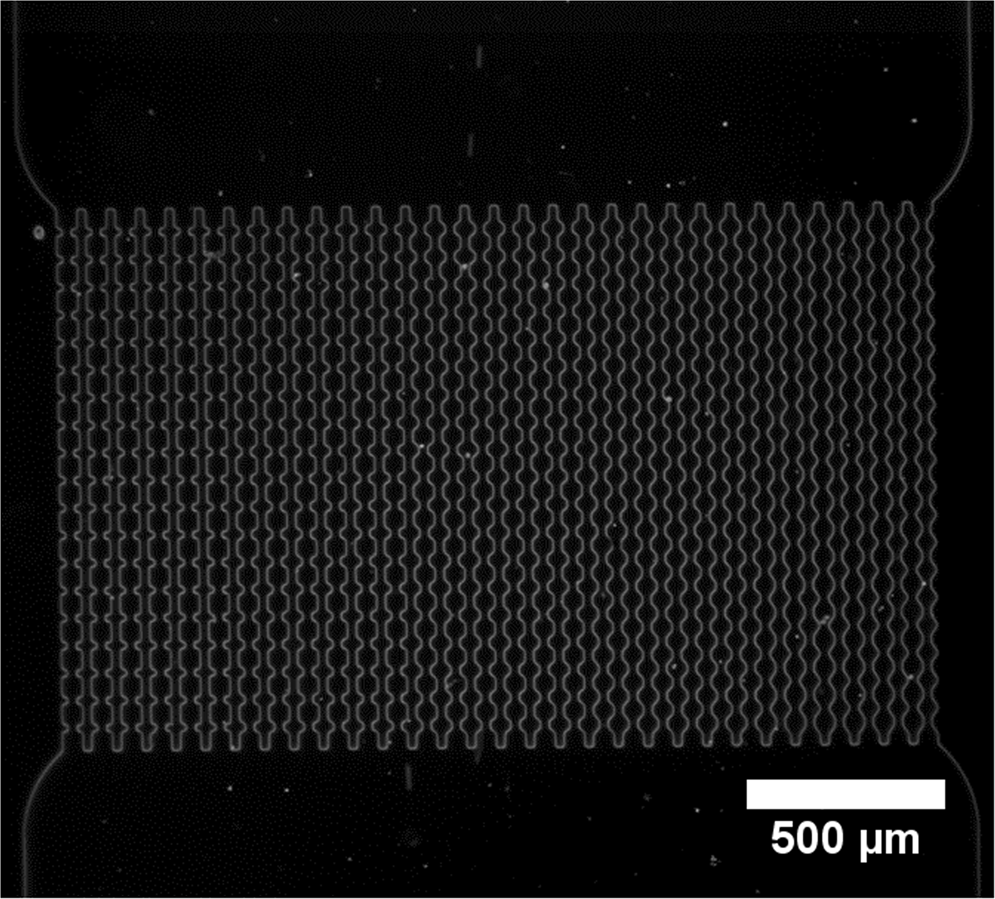

Optical microscopy image of the array of channels that compose the microfluid device at 2.5x magnification. There are 30 parallel channels with five different entrance angles. From left to right: 0°, 20°, 35°, 45°, 55° (see Fig. 2a).
