Figure 8
From: Microfluidic model systems used to emulate processes occurring during soft particle filtration

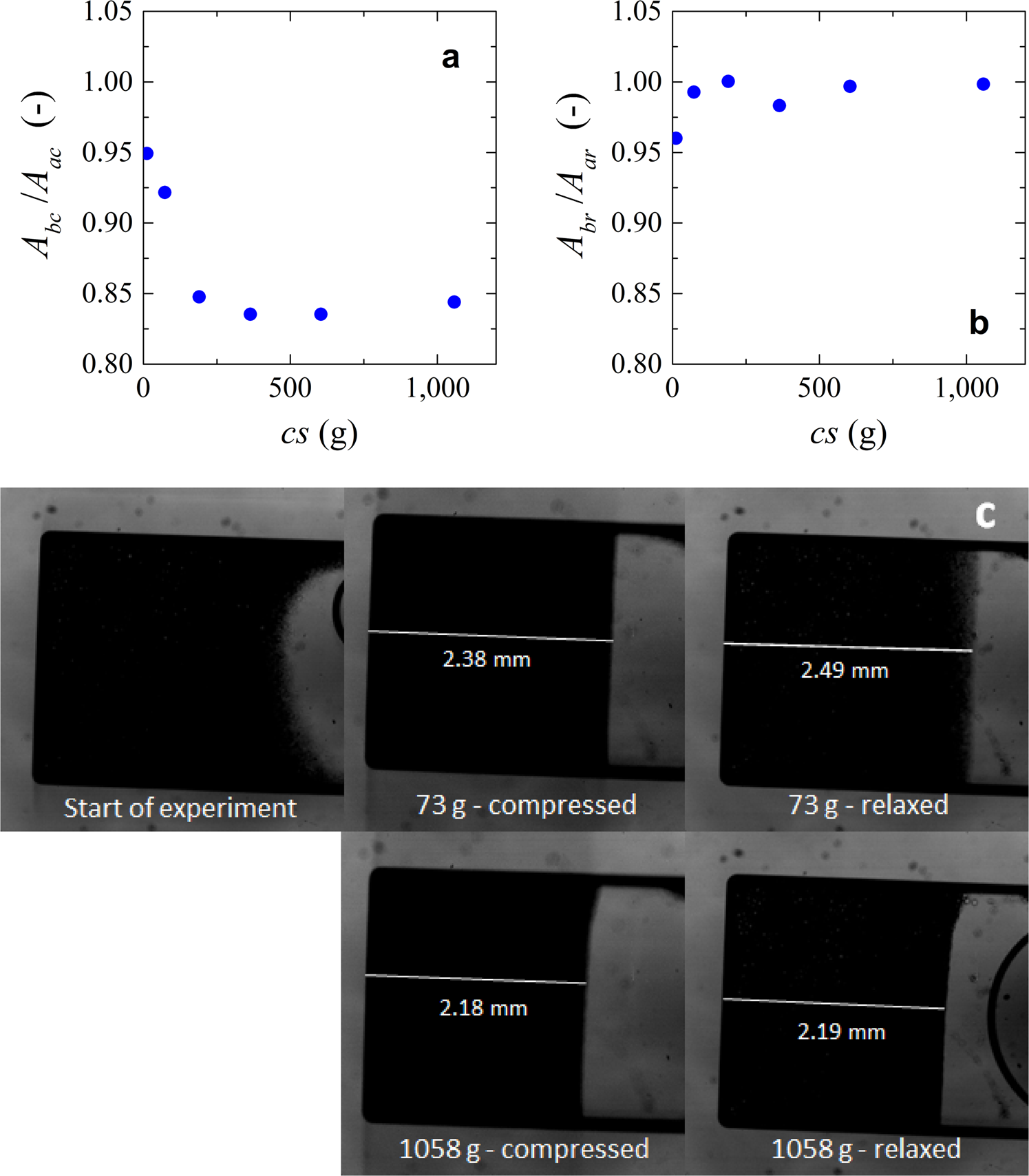

(a) Compression data of microgels. Ratio between area after compression (Aac) and the area before compression (Abc) versus centrifugation speed (cs). (b) Relaxation data of microgels. Ratio between area after (Aar) and before relaxation (Abr) versus centrifugation speed (cs). (c) images showing the compressed and relaxed microgels at low and high number of g-forces. Values of area were measured manually with an average measurement error <0.5%.
