Figure 4
From: Dynamic formation of stable current-driven plasma jets

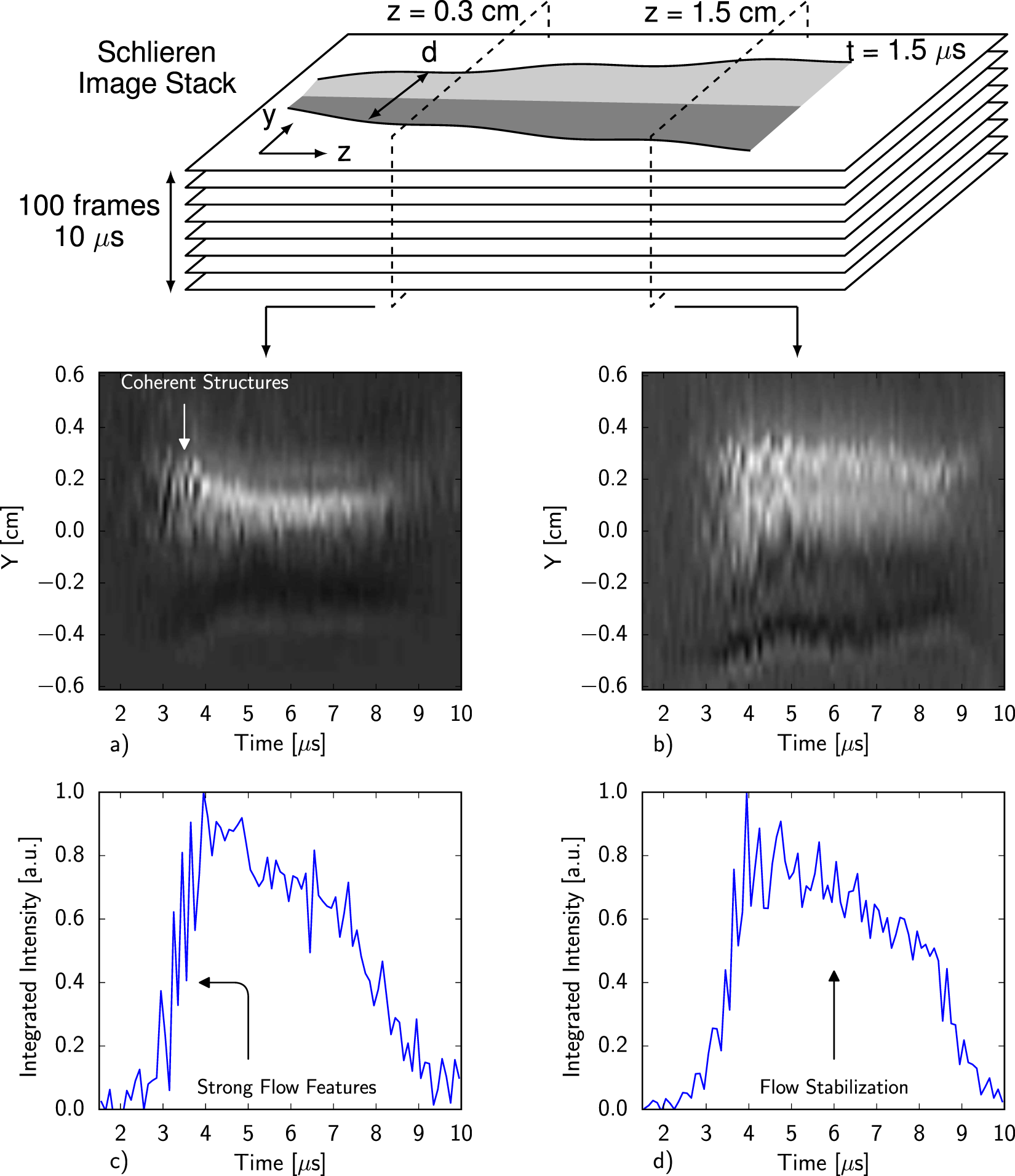

Jet Formation Process: Streak images of the plasma jet at fixed axial locations (a,b) formed by taking vertical slices of the schlieren image stack. Integrated schlieren signals of the top half of each of the streak images (c,d) illustrate that the inhomogeneities in the plasma column that are initially prevalent within the jet decrease in frequency over time.
