Figure 6

From: Effects of RNAi-based silencing of chitin synthase gene on moulting and fecundity in pea aphids (Acyrthosiphon pisum)

Figure 6

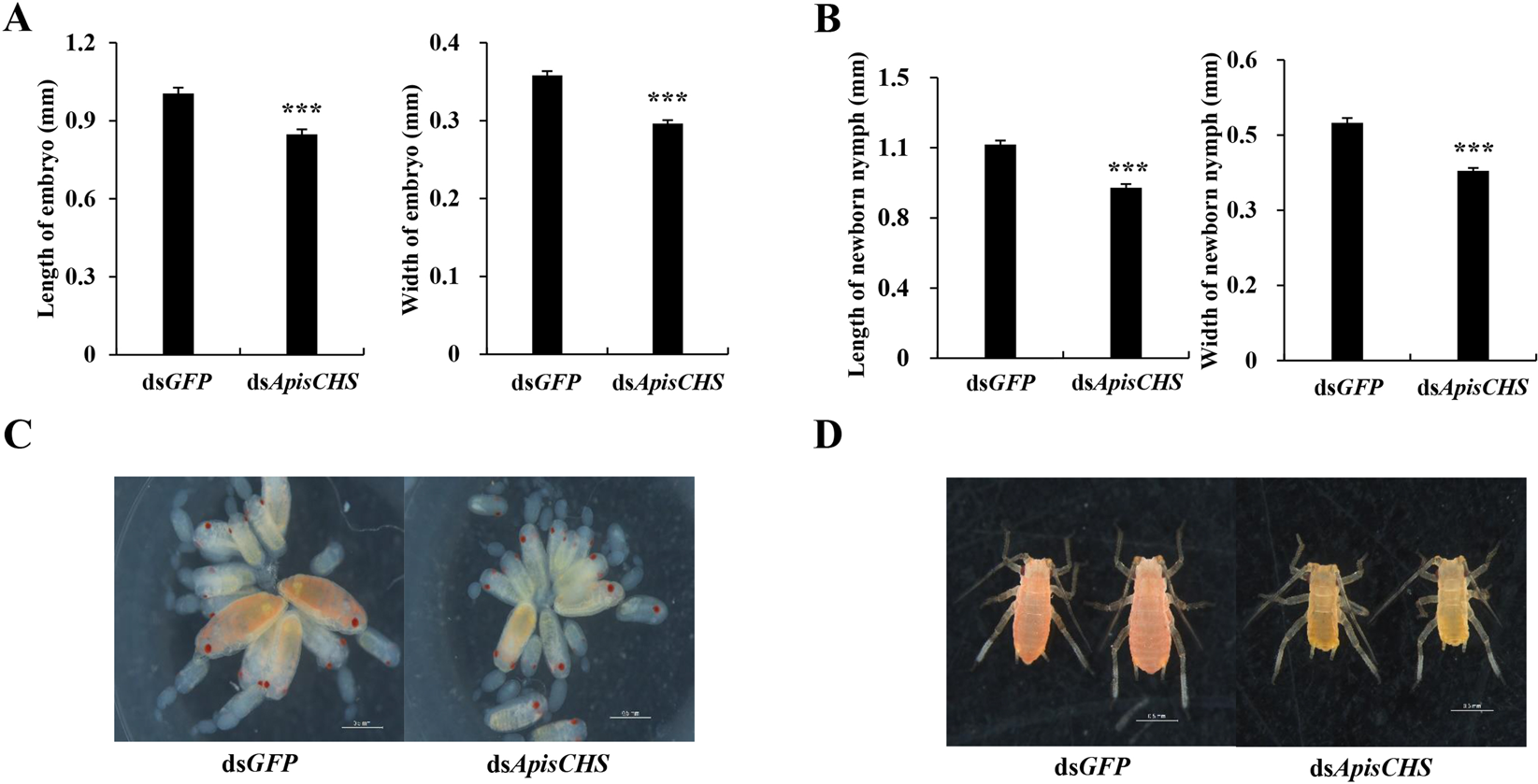

Phenotypes of embryonic development after silencing of ApisCHS. (A) Size of mature embryos (n = 60). Statistical analysis was performed using Student’s t-test (***P < 0.001). (B) Size of newborn nymphs (n = 60). Statistical analysis was performed using Student’s t-test (***P < 0.001). (C) Phenotypes of dissected embryos in treatment and control groups. (D) Phenotypes of dissected embryos in treatment and control groups. All photographs and sizes were obtained using a Leica M205 C microscope (Leica Microsystems, Buffalo Grove, IL) and measured by the software Leica Application Suite (LAS).
