Figure 2

From: Device Thrombogenicity Emulation: An In Silico Predictor of In Vitro and In Vivo Ventricular Assist Device Thrombogenicity

Figure 2

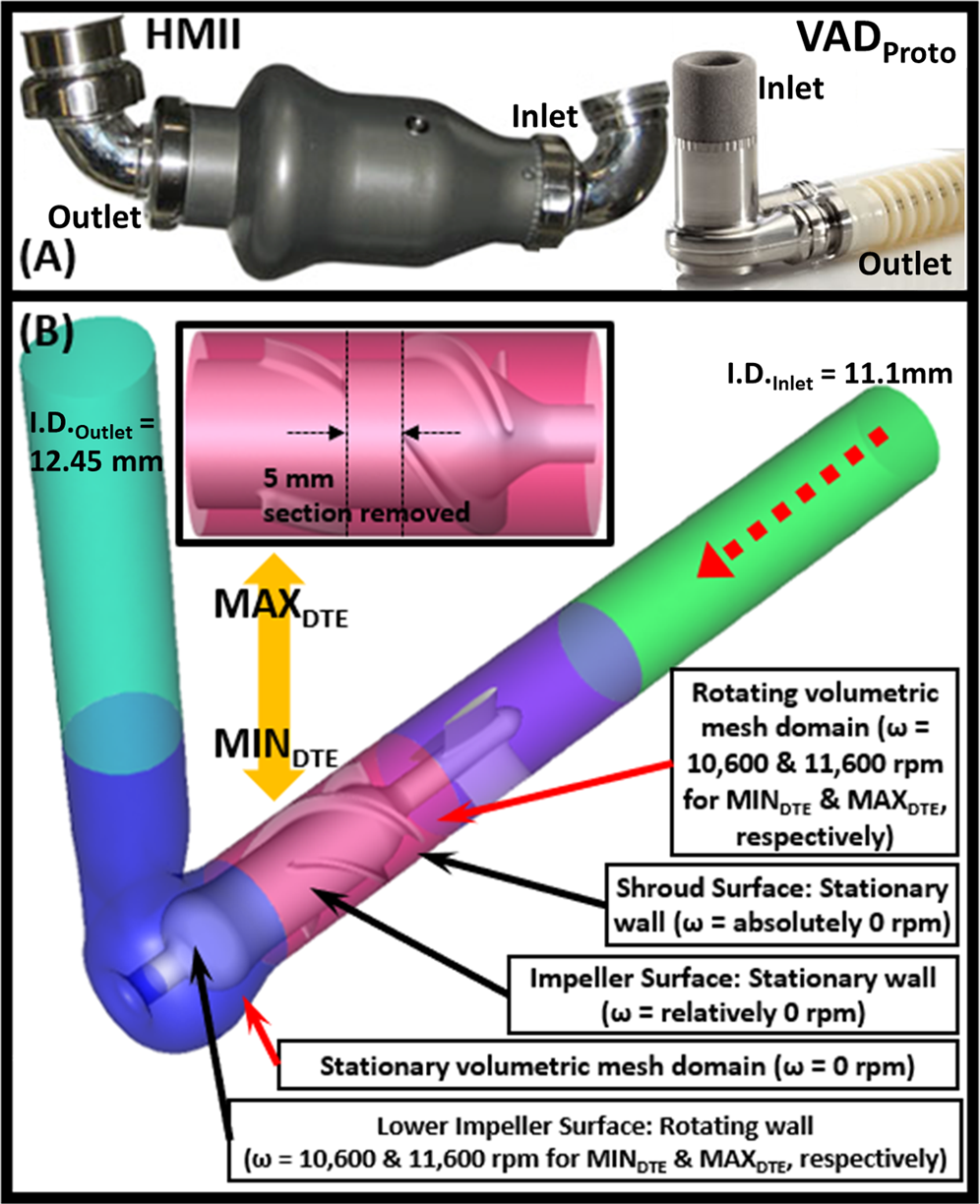

(A) The Thoratec HMII (left) and VADproto (right) VADs shown at the same scale. (B) Interior design schematics of the MINDTE, and (inset) the modified impeller of MAXDTE with a 5 mm segment of impeller blades removed. The red dotted arrow indicates the flow direction. The inlet and outlet diameters were 11.1 and 12.45 mm, respectively. The simulation boundary conditions were described in text boxes and pointed to the designated sections.
