Figure 4

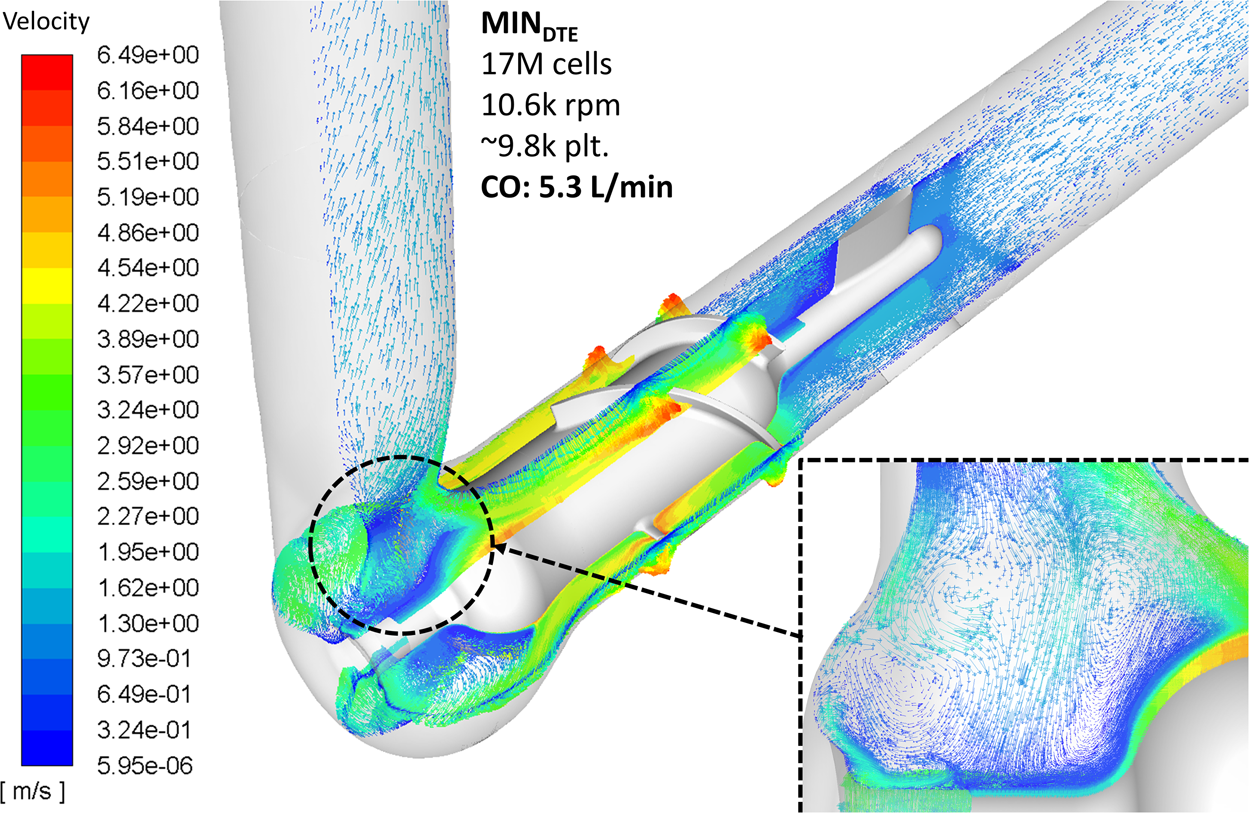

Two perpendicular cross-sections of the instantaneous velocity flow field within the MINDTE from a single freeze frame. High flow velocities were observed at the gap clearance between the impeller and the shroud. In addition, recirculation zones formed towards the outflow tract where the flow is converted from axial to centrifugal (inset).
