Figure 4
From: The traumatic brain injury mitigation effects of a new viscoelastic add-on liner

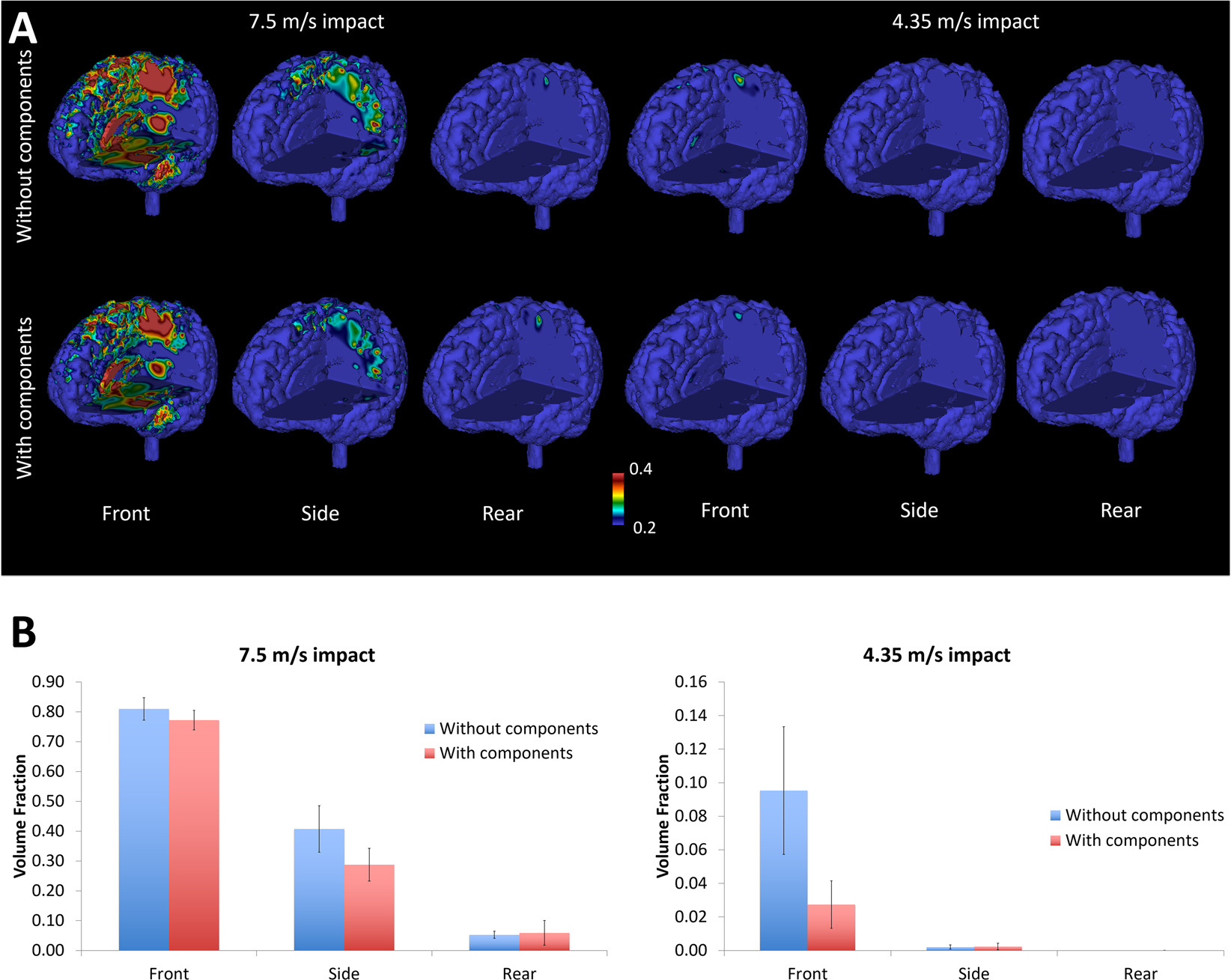

Computational results; (A) comparison of the strain contours (0.2–0.4) for the different impacts sites and velocities for specimens with and without the viscoelastic components; (B) comparison between cases with and without the viscoelastic component, of brain volume fraction averages exceeding 0.2 strain.
