Figure 2 | Scientific Reports

Figure 2

From: Comparison of Viremia, Cloacal Virus Shedding, Antibody Responses and Pathological Lesions in Adult Chickens, Quails, and Pigeons Infected with ALV-A

Figure 2

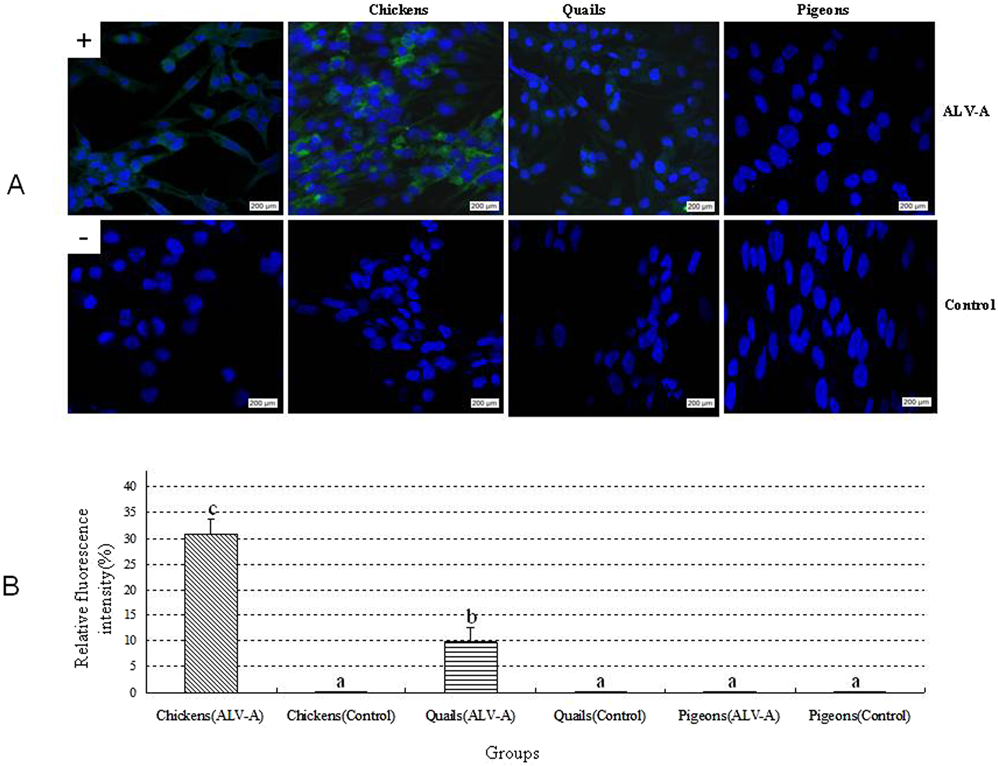

(A), IFA for detecting ALV-A in the plasma samples from different groups using DF1 cells and nuclear staining using DAPI (400x); (B), the relative fluorescence intensity in different groups was quantified using image J software. All the DF1 cells were detected using IFA mediated MAb against ALV-A on 5 day post inoculation. Green fluorescence in the cytoplasm: positive for ALV-A. +: positive control; −: negative control. In IFA of figure A, the plasma sample from ALV-A-infected chickens on 15 dpi was diluted to 1:100; all the plasma samples from control chickens on 15 dpi and from ALV-A-infected or control quails on 6 dpi and from ALV-A-infected or control pigeons on 15 dpi were not diluted. Different letters on the bars of two groups in figure B mean statistically significant difference between them (P < 0.05) and same letters mean no statistically significant difference (P > 0.05).
