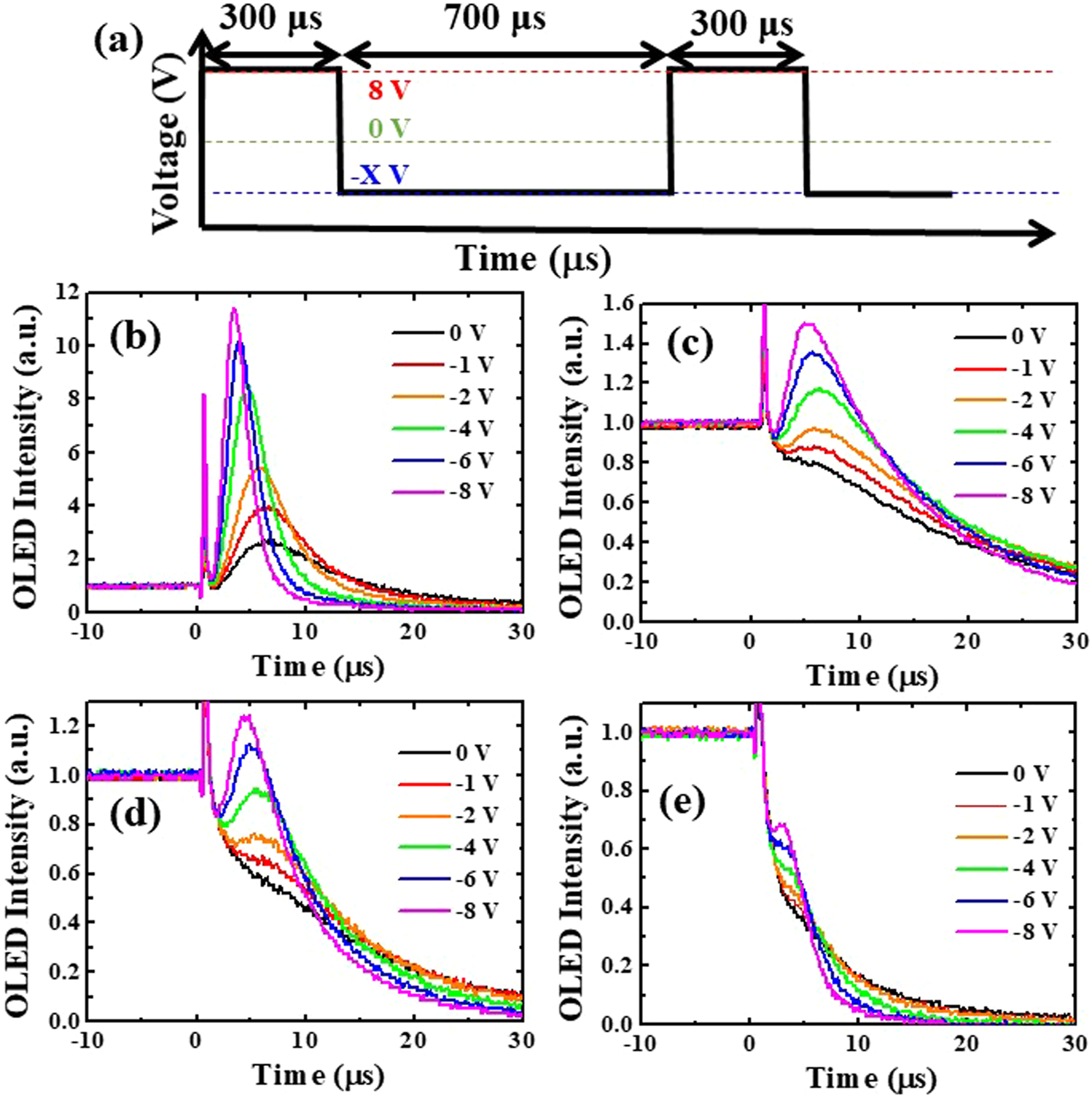

Figure 7

(a) Schematic diagram of waveforms with different reverse biases during off period. Transient luminance of BPOLEDs with (b) mCP, (c) TAZ, (d) mCP:TAZ, and (e) 2CbzTAZ when the electrical pulse was turned off under different driving waveforms.
