Figure 2

From: Coarsening Behavior of Particles in Fe-O-Al-Ca Melts

Figure 2

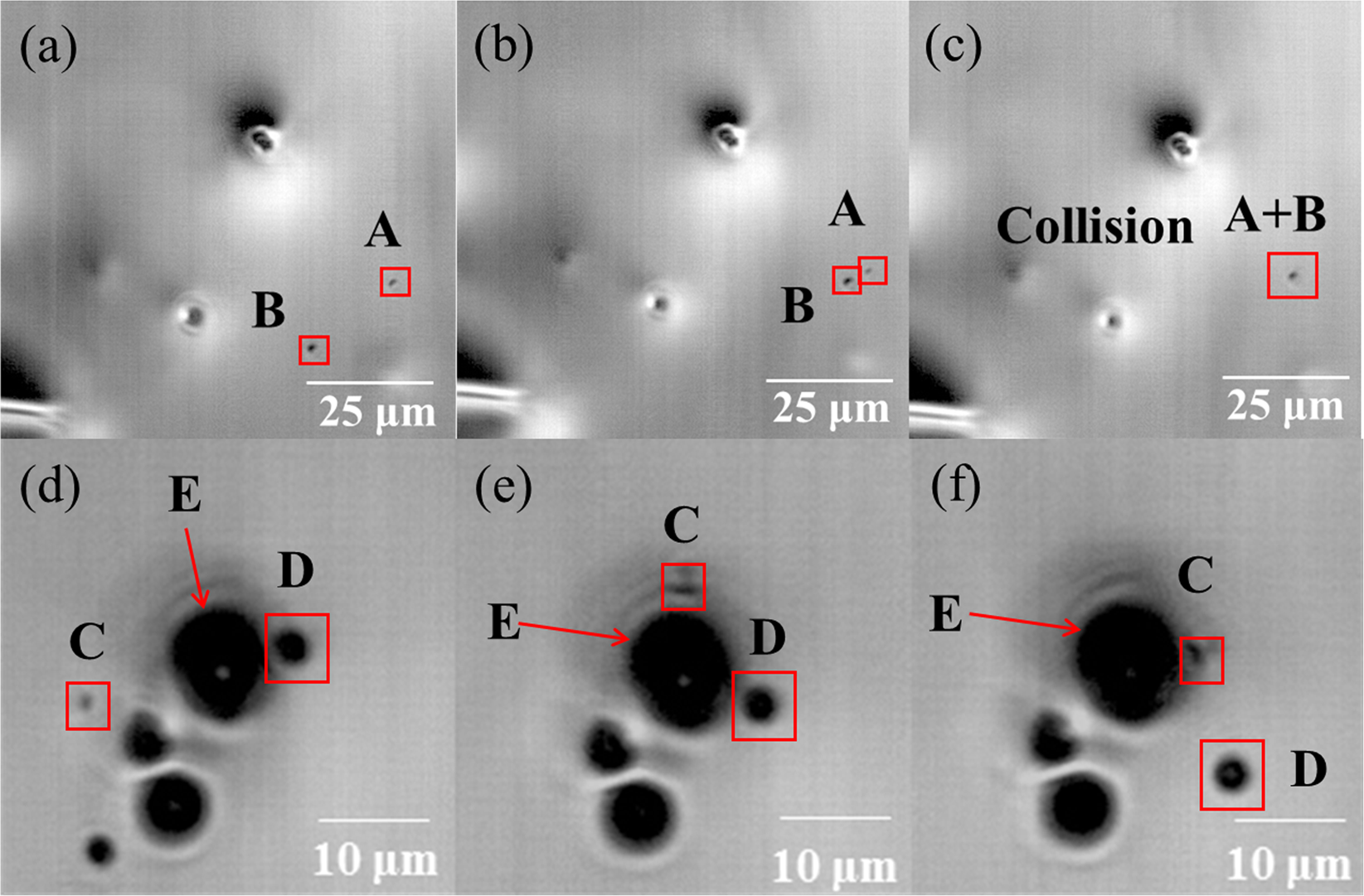

In-situ observation of calcium aluminate inclusions on the surface of Fe-O-Al-Ca melt by HT-CSLM. (a) Particles A and B at 0 s in field 1; (b) particles A and B at 0.22 s in field 1; (c) particles A and B at 0.66 s in field 1; (d) particles C, D and E at 0 s in filed 2; (e) particles C, D and E at 0.55 s in field 2; (f) particles C, D and E at 1.21 s in field 2.
