Figure 3
From: Long-lived compositional heterogeneities in magma chambers, and implications for volcanic hazard

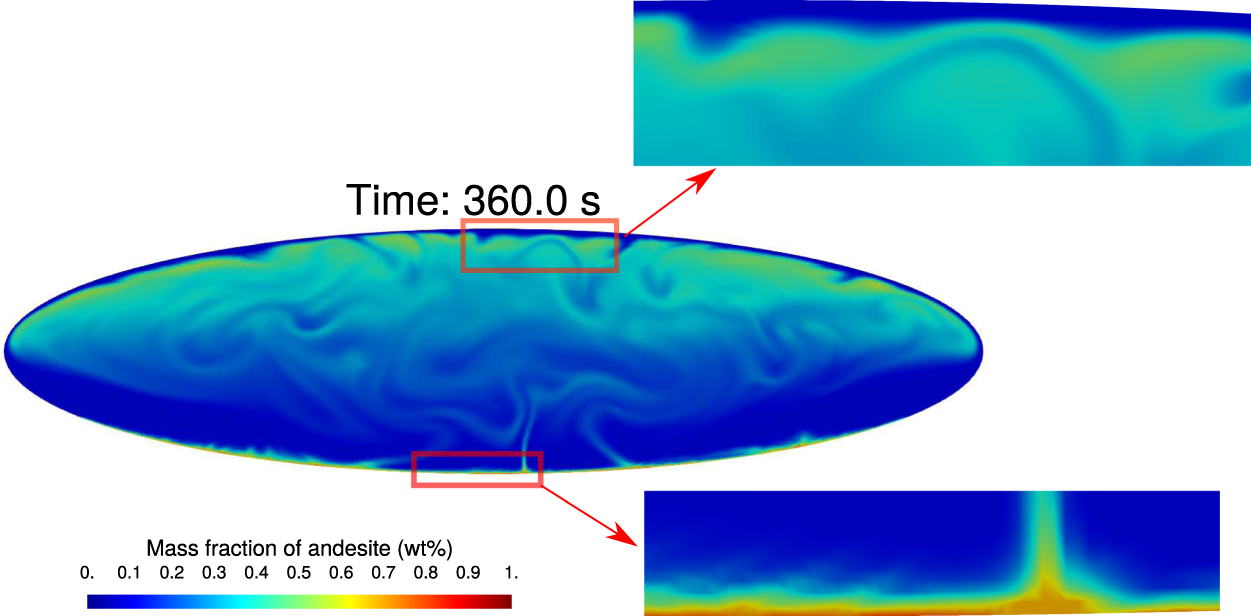

Distribution of andesitic composition during second phase at time t = 360 s for simulation #1. The zoomed views show the boundary layers of andesite at the bottom and dacite at the top of the chamber.
