Figure 13
From: A New GPS SNR-based Combination Approach for Land Surface Snow Depth Monitoring

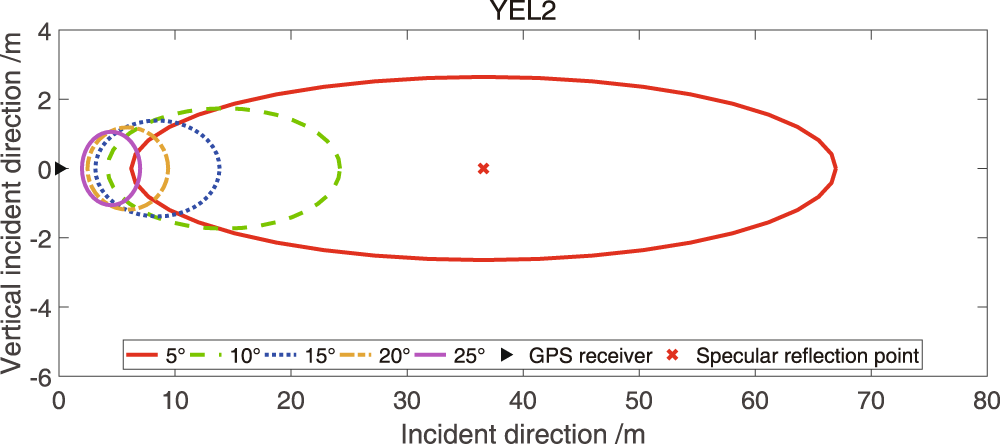

First Fresnel zone for a typical antenna height with different elevation angles. Assuming the GPS L2 (\({\rm{\lambda }}=0.244\,{\rm{m}}\)) band as an example, the ground antenna height is 1.8 m at YEL2.
