Figure 1
From: Metamaterial for elastostatic cloaking under thermal gradients

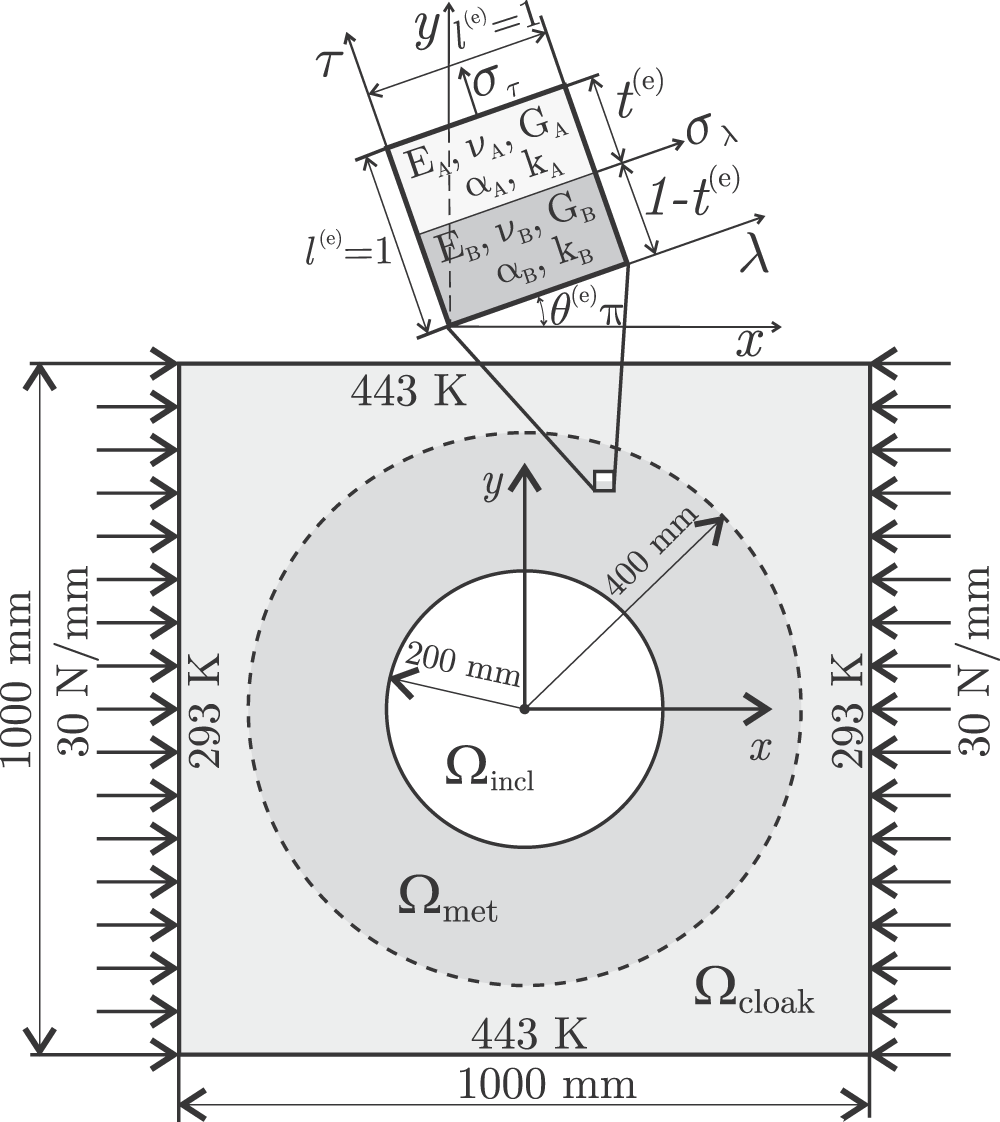

Domain Ω = Ωcloak ∪ Ωmet ∪ Ωincl and boundary conditions of the thermo-mechanical problem. Above, the representative volume element (RVE) characterizing the microstructure in the device Ωmet.
