Figure 2
From: Metamaterial for elastostatic cloaking under thermal gradients

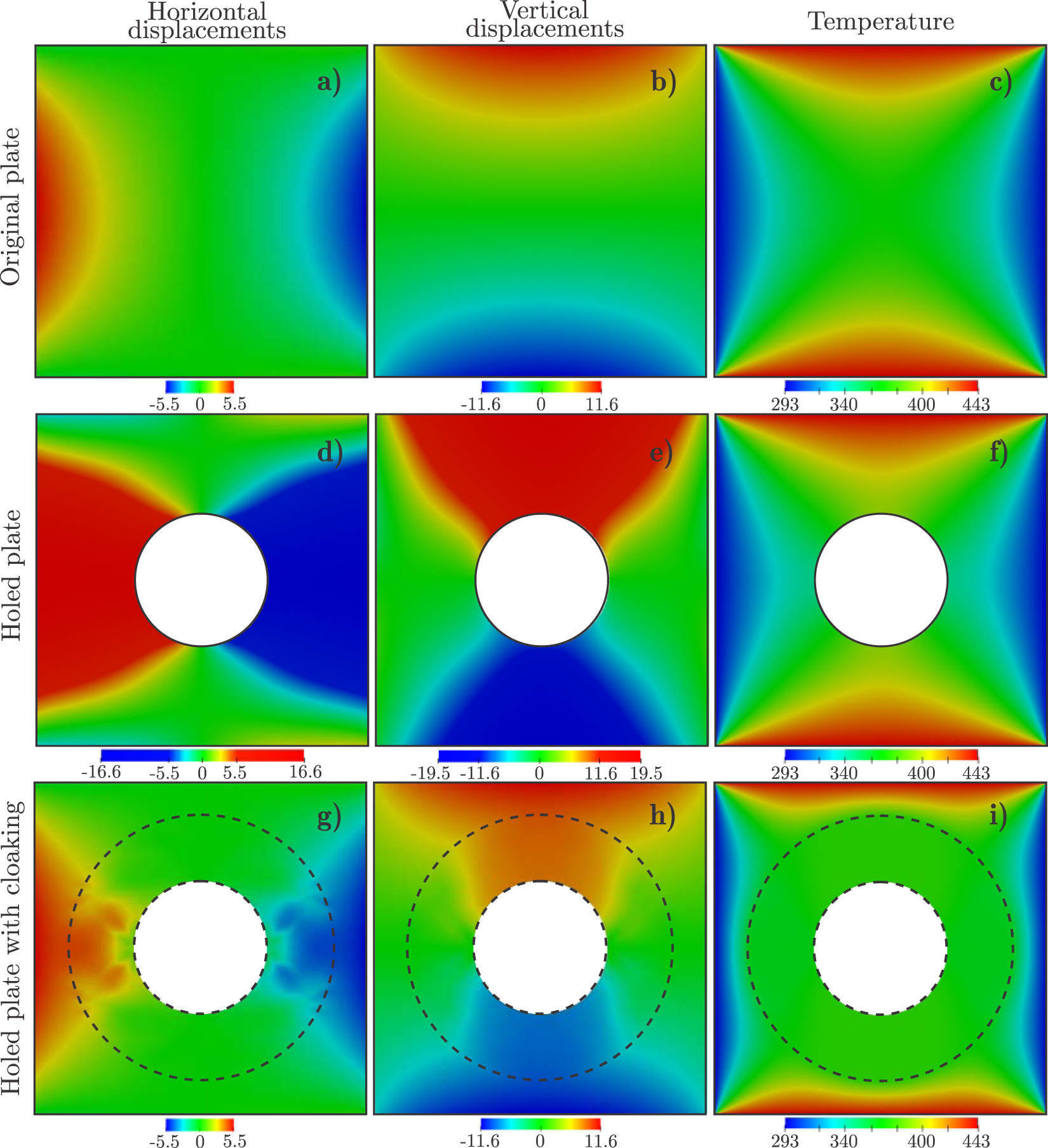

Displacements and temperature distributions for the homogeneous plate without hole, the homogeneous plate with hole, and the plate with the cloaked hole. Displacements and temperature distributions are given in millimeters and Kelvin, respectively.
