Figure 5

From: Interindividual neural differences in moral decision-making are mediated by alpha power and delta/theta phase coherence

Figure 5

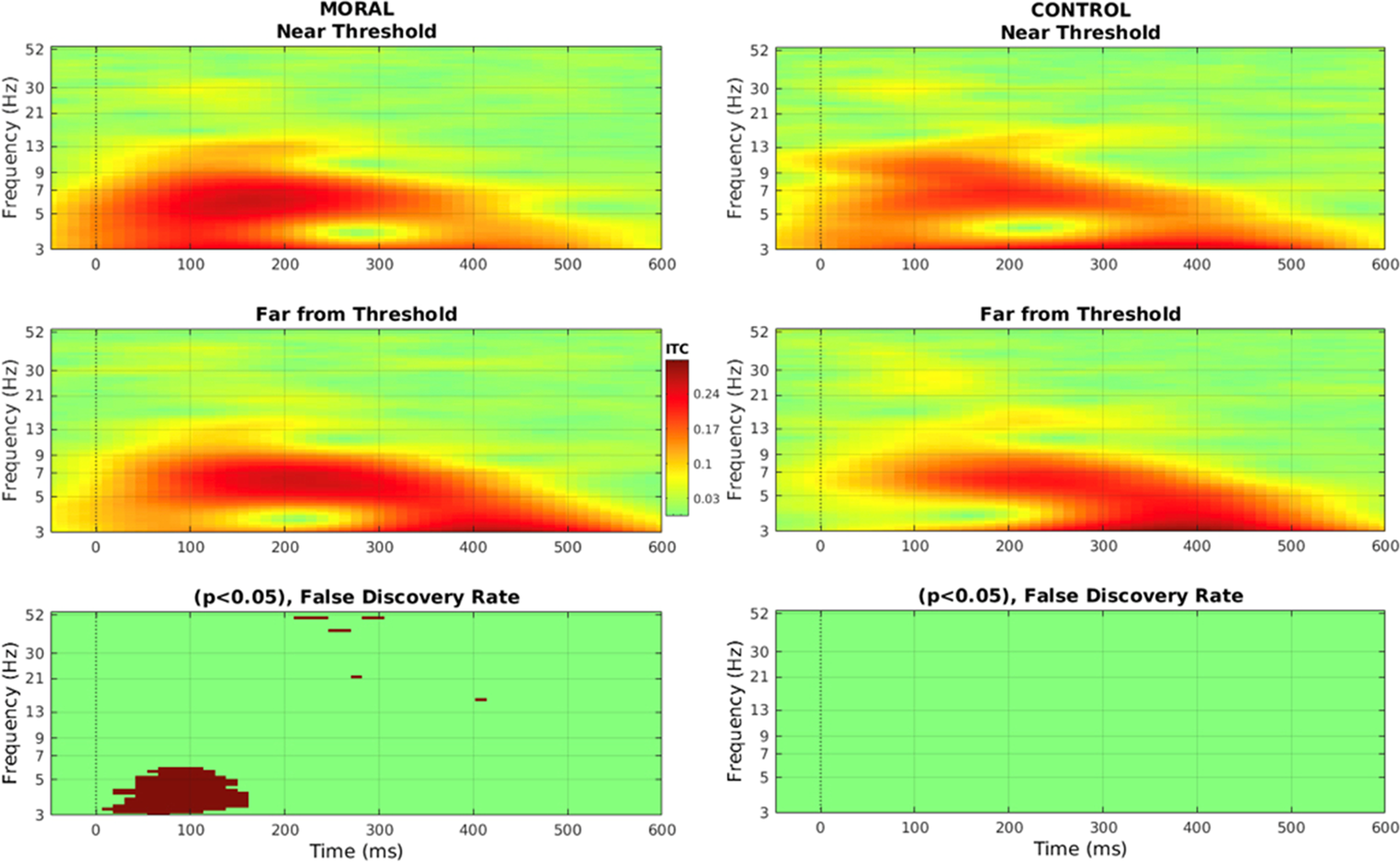

Intertrial coherence (ITC) at Pz for the first segment of the epoch (0–600 ms) in both conditions and for both proximities to threshold. ITC from baseline through stimulus onset (0 ms) to 600 ms for Moral (left side) and Control (right side) Near Threshold (top row) and Far from Threshold (second row). There was a significant difference in ITC from 3–6 Hz in the first 150 ms in the Moral condition. This was not seen in the Control condition. The significance level is 0.05, and t-tests are corrected for multiple comparisons using the False Discovery Rate.
