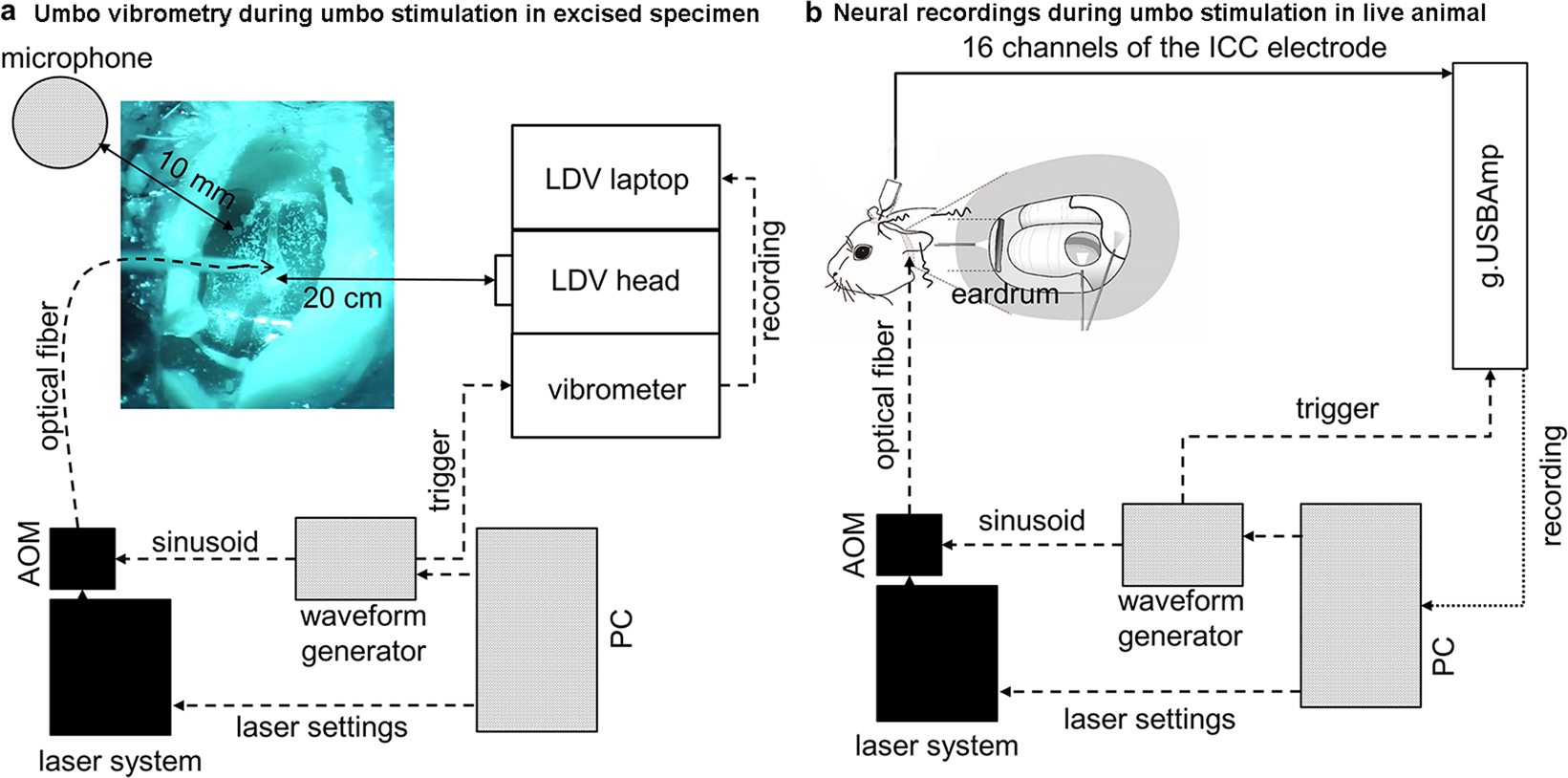

Figure 2

Experimental set up. The trigger-signals for the recordings as well as the sinusoids for the laser stimulation were generated on a PC. They had an onset that was synchronized to laser stimulation. The stimulation laser was operated with a pre-determined laser pulse rate (LPR) of either 32 kHz or 50 kHz. The sinusoid signals were generated with a specific laser modulation rate (LMR) (Fig. 1). The signal (duration of 100 ms with 0.5 ms rise/fall ramp time) was transferred to the input of the acousto-optic modulator (AOM) using the laser fiber (Ø 365 µm) that was connected to the AOM. The distance between the fiber and the tympanic membrane was less than 1 mm. (a) For the vibration recordings in response to the laser stimulation in extracted specimens, we placed a scanning laser Doppler (LDV) at a distance of 20 cm from the TM. Using the built-in camera of the LDV, the TM could be displayed on the monitor, the measured points were visualized and the recordings could be monitored and controlled. The acoustic feedback signal was measured at a distance of 1 cm from the ear drum after optical stimulation with 1 kHz and 8 kHz LMR and 50 kHz LPR. (b) For the in vivo recordings of spike activity in the ICC, a multi-site electrode array with 16 channels was connected via a custom-made head stage to a biosignal amplifier (g.USBamp). The reference was displayed on channel 1 to check the noise level. The raw data was saved for each channel unfiltered for offline analysis on the PC.
