From: Genome-wide Identification of Tebufenozide Resistant Genes in the smaller tea tortrix, Adoxophyes honmai (Lepidoptera: Tortricidae)

Figure 6

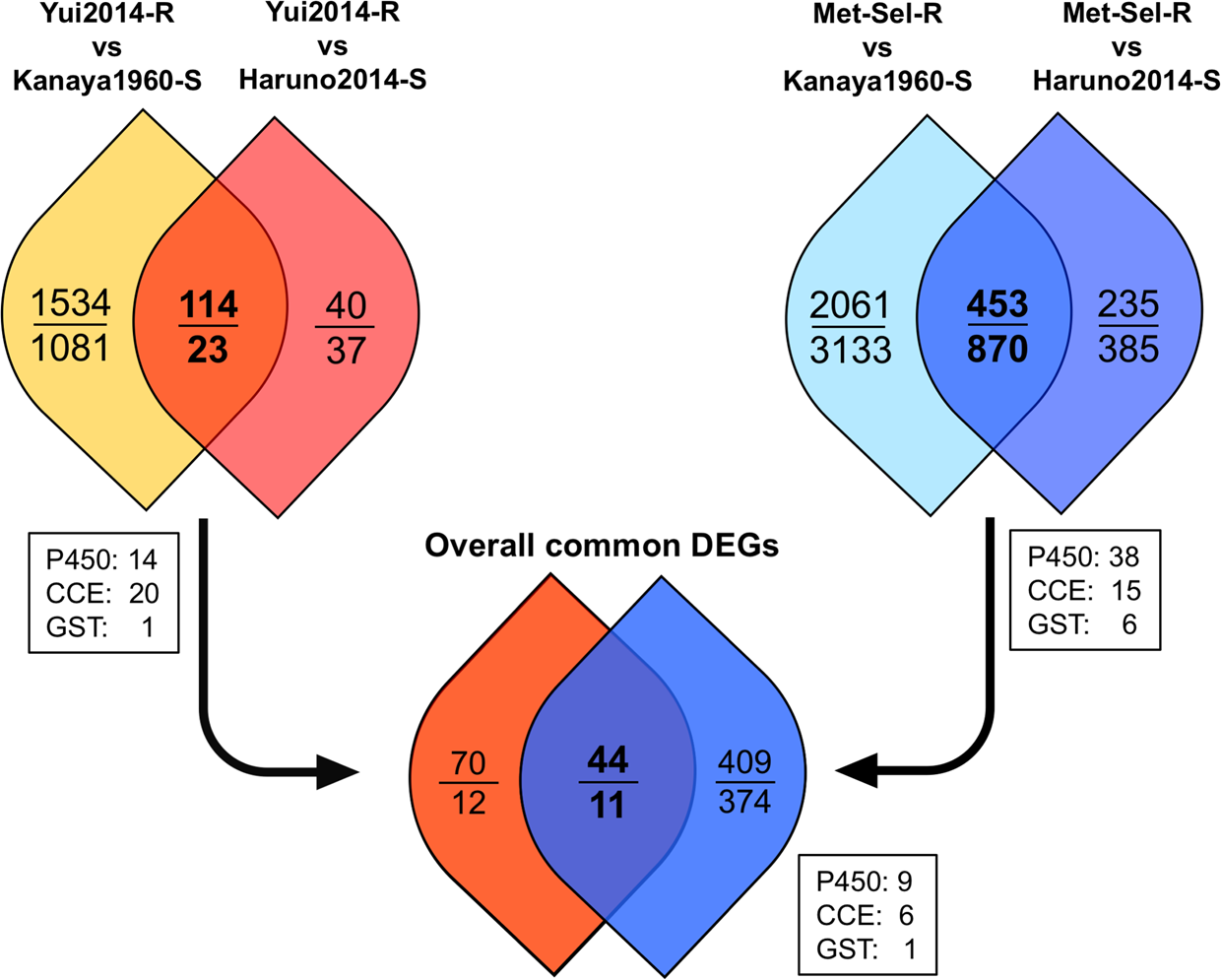

Schematic identification of differentially expressed genes (DEGs) between tebufenozide-resistant and -susceptible strains. Numbers within the circles indicate the up-regulated/down-regulated DEGs in resistant strains. Numbers within the boxes indicate common up-regulated metabolic enzyme genes in each comparison. Detailed information on common up- and down-regulated genes in each comparison are described in Supplementary Excel Files S2 and S3, respectively.
