Figure 5
From: Optofluidic vapor sensing with free-space coupled 2D photonic crystal slabs

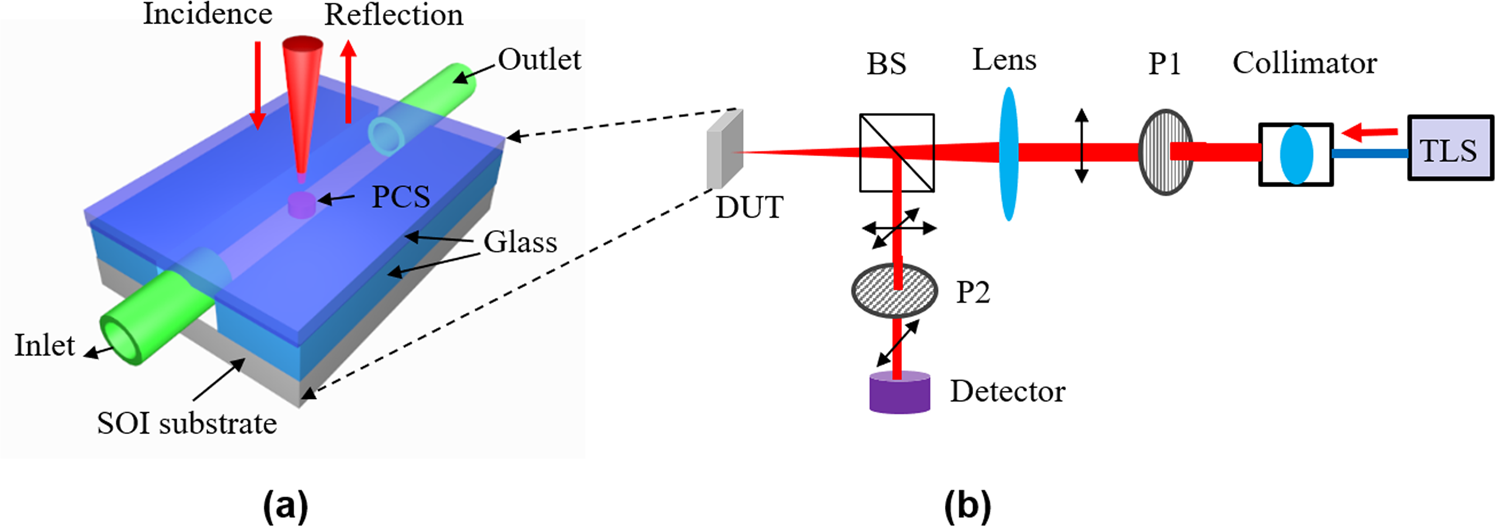

(a) A schematic of the PCS vapor sensor device on a chip; (b) Reflection measurement setup under surface-normal incidence. TLS: tunable laser source, P1 and P2: linear polarizer, BS: beam splitter, DUT: device under test.
