Figure 2

From: Resveratrol, lunularin and dihydroresveratrol do not act as caloric restriction mimetics when administered intraperitoneally in mice

Figure 2

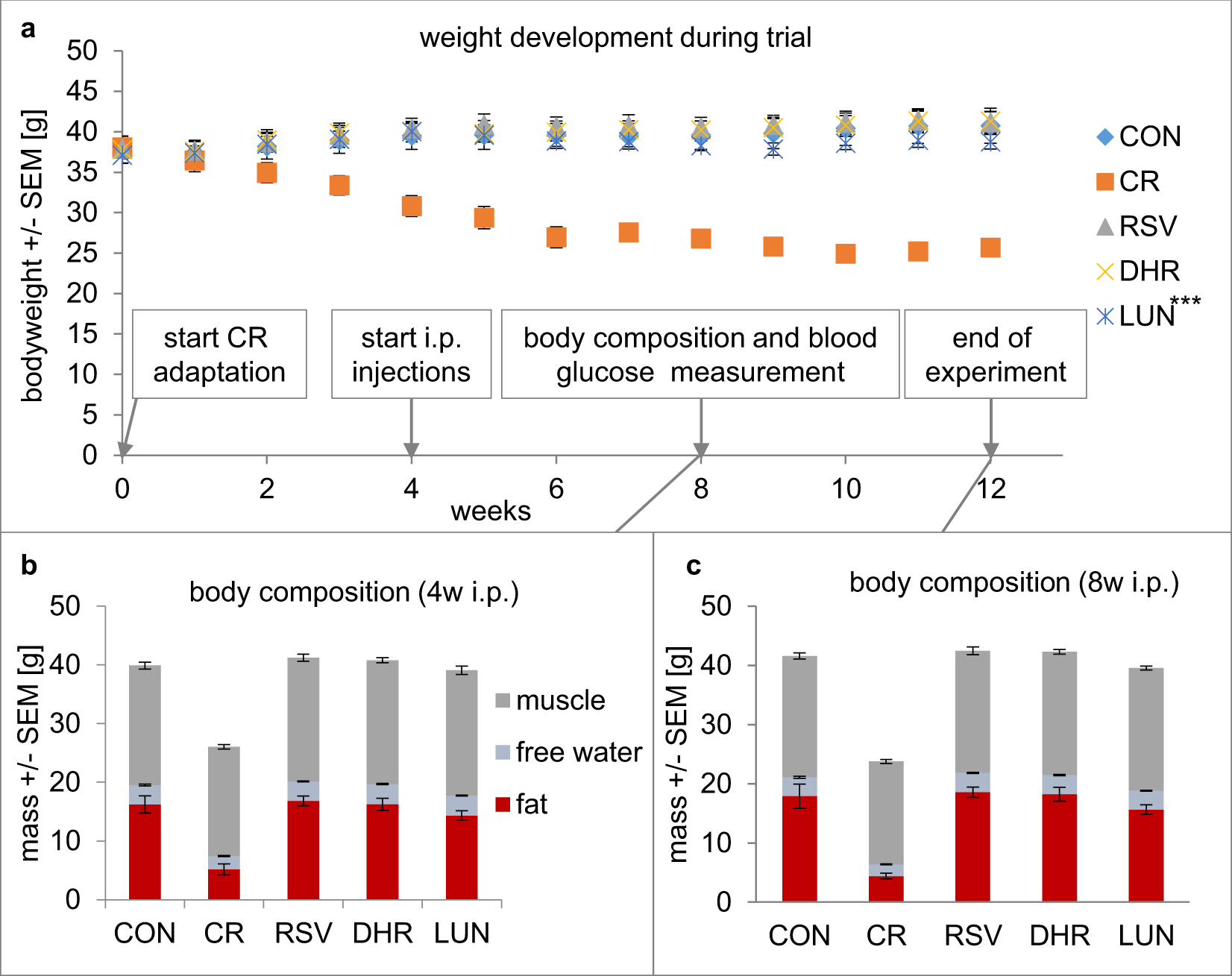

Weight development of C57BL/6 mice during the trial (a), body composition (halfway through the intraperitoneal injections (b) and at the end of the trial (c)). While we observed a typical CR phenotype when looking at bodyweight and body composition of CR mice, only the lunularin group showed a significant difference in bodyweight development compared to the AL control. Groups of mice: CON – AL-control, CR – CR-control, RSV – resveratrol, DHR – dihydroresveratrol, LUN – lunularin, w – weeks, n ≥ 8; ***p < 0.001 (ANCOVA, Dunnett AL-control).
