From: Differential gene expression in response to eCry3.1Ab ingestion in an unselected and eCry3.1Ab-selected western corn rootworm (Diabrotica virgifera virgifera LeConte) population

Figure 5

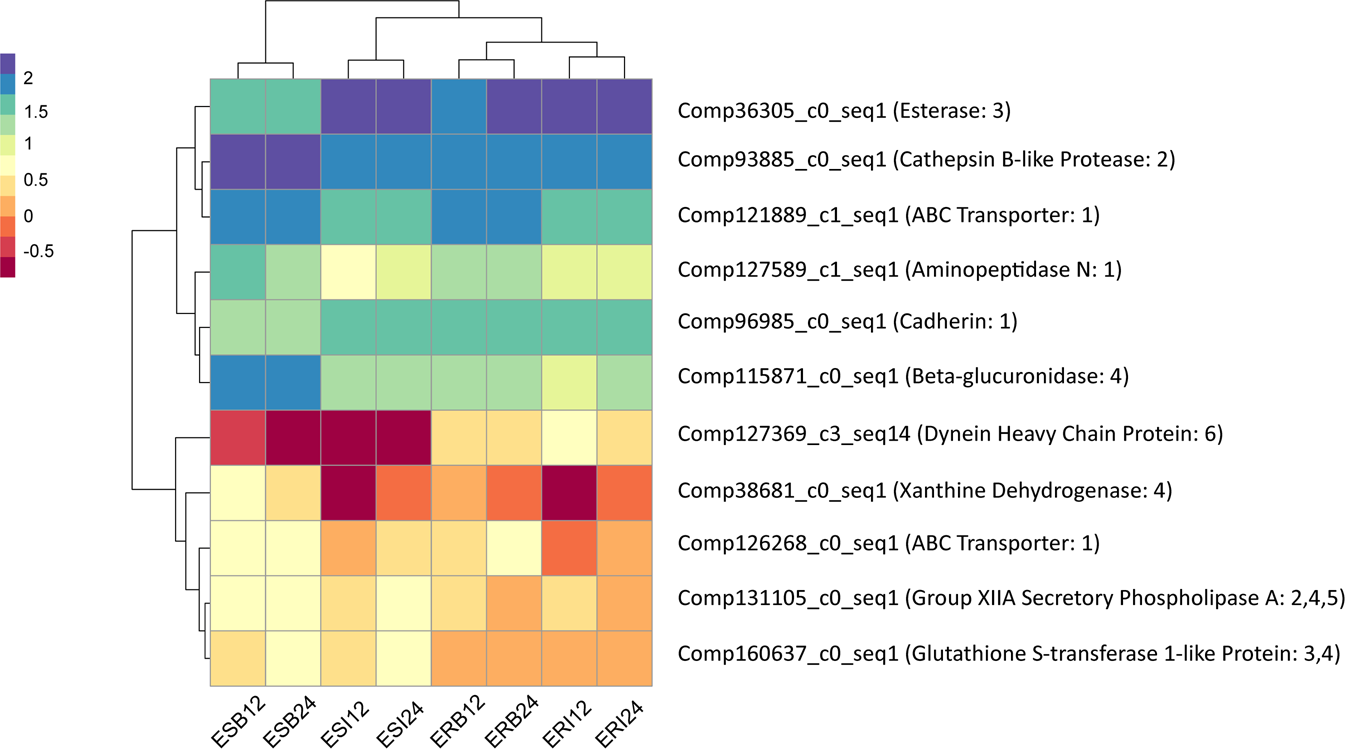

Expression levels of 11 potential eCry3.1Ab resistance related genes in 8 WCR midgut treatment group (see Table 6). Expression level s are quantified by count per million read (cpm). The candidate genes are categorized into: 1: potential Bt receptors; 2: digestive proteases; 3: detoxification enzymes; 4: enzymes involve in drug metabolism pathway; 5: enzymes involve in membrane related pathways; 6: other candidates.
