Figure 3

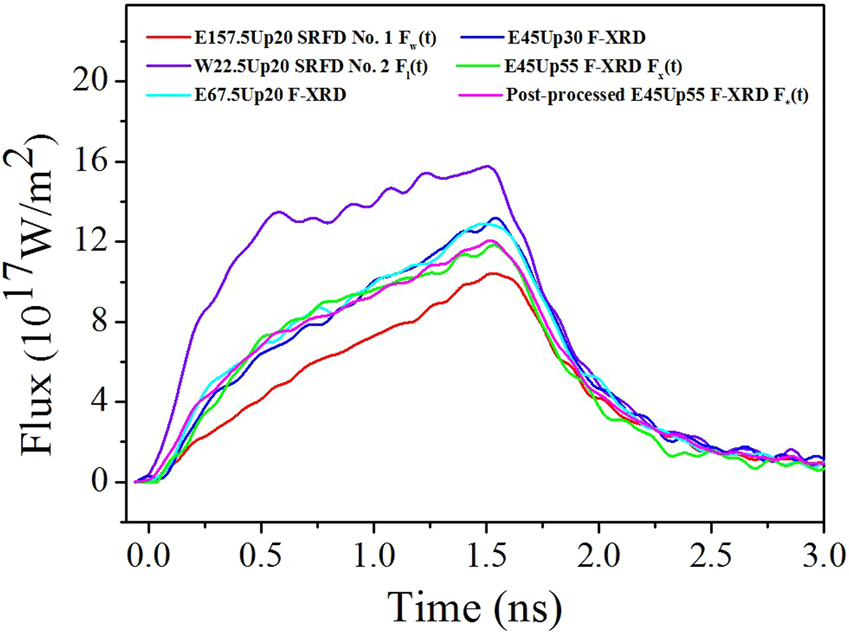

Fluxes detected by SRFD nos 1 (Fw(t)) and 2 (Fl(t)) and F-XRDs. The F-XRDs were set at 20°, 30° and 55° (Fx(t)) relative to the hohlraum axis. The post-processed area-weighted flux (F*(t)) is also shown.
Figure 3 | Scientific Reports
Fluxes detected by SRFD nos 1 (Fw(t)) and 2 (Fl(t)) and F-XRDs. The F-XRDs were set at 20°, 30° and 55° (Fx(t)) relative to the hohlraum axis. The post-processed area-weighted flux (F*(t)) is also shown.
