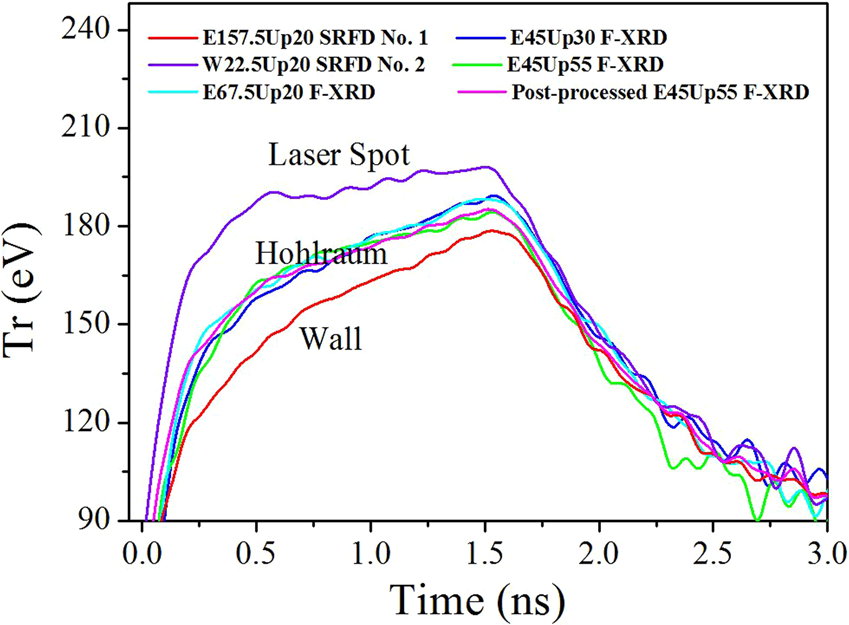

Figure 4

Radiation field temperatures of the laser spot and the re-emitting wall measured by SRFD nos 2 and 1 and the radiation field temperatures detected from the LEH by three F-XRDs set at 20°, 30° and 55° relative to the hohlraum axis. The radiation field temperature obtained from the post-processed area-weighted flux is also shown.
