From: First exploration of radiation temperatures of the laser spot, re-emitting wall and entire hohlraum drive source

Figure 5

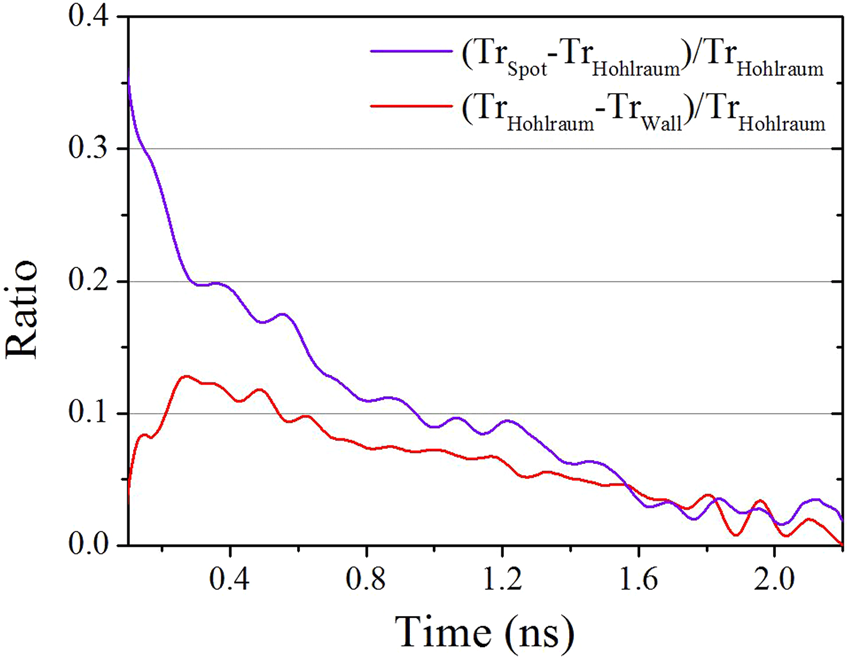

Ratio of the difference between the radiation field temperature introduced by the laser spot and that of the entire hohlraum drive source to the latter (\((T{r}_{Spot}\,-\,T{r}_{Hohlraum})/T{r}_{Hohlraum}\), purple curve) and ratio of the difference between the radiation field temperature of the entire hohlraum drive source and that introduced by the re-emitting wall to the former (\((T{r}_{Hohlraum}\,-\,T{r}_{Wall})/T{r}_{Hohlraum}\), red curve).
