Figure 2
From: Context-dependent activity of A domains in the tyrocidine synthetase

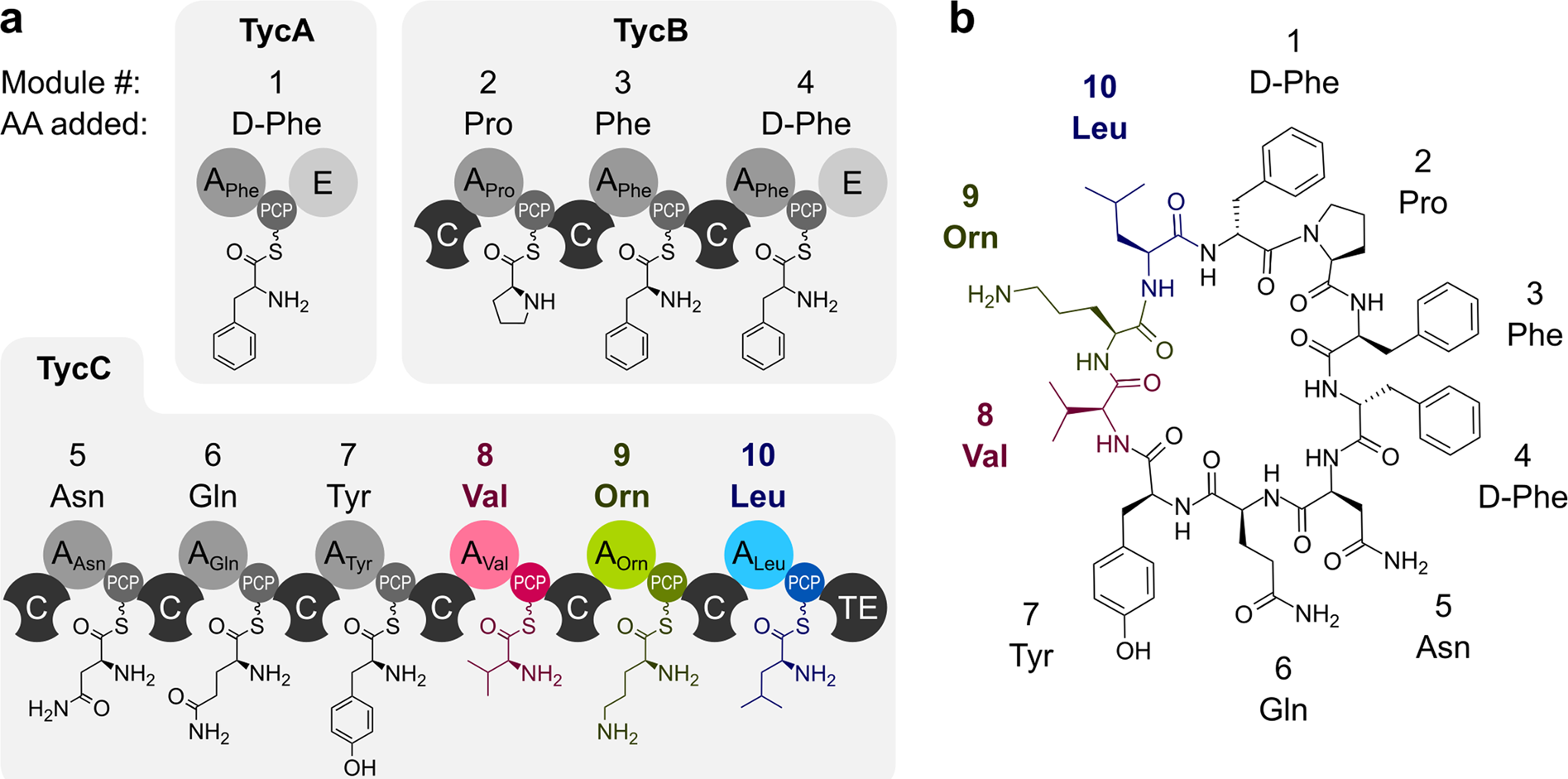

The tyrocidine synthetase produces the antimicrobial cyclic peptide tyrocidine. (a) Schematic depiction of the three enzymes that make up the tyrocidine synthetase. Numbers refer to the modules. Modules used in this study are shown in color. Amino acids are depicted attached to the PPE arms. (b) Chemical structure of tyrocidine. The three amino acids incorporated by the modules used in this study are shown in color. Colors as in (a).
