Figure 6

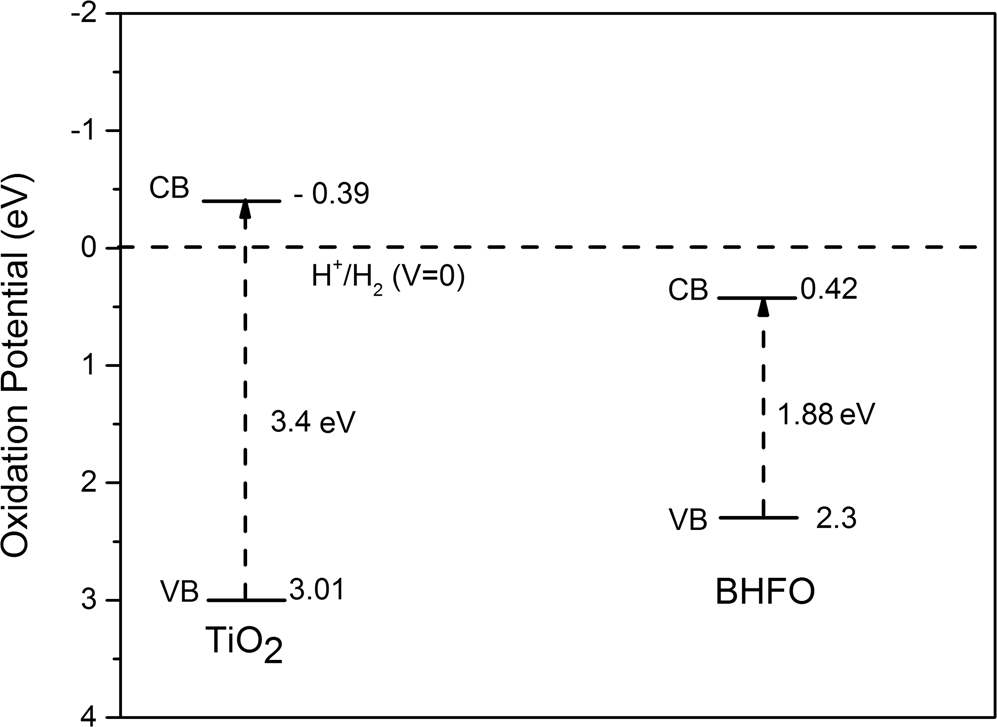

Schematic illustration for the calculated energy level diagram indicating the conduction and valence band potentials of TiO2 film and BHFO nanoparticles.
Figure 6 | Scientific Reports
Schematic illustration for the calculated energy level diagram indicating the conduction and valence band potentials of TiO2 film and BHFO nanoparticles.
