Figure 3
From: Assessment of the energy recovery potential of waste Photovoltaic (PV) modules

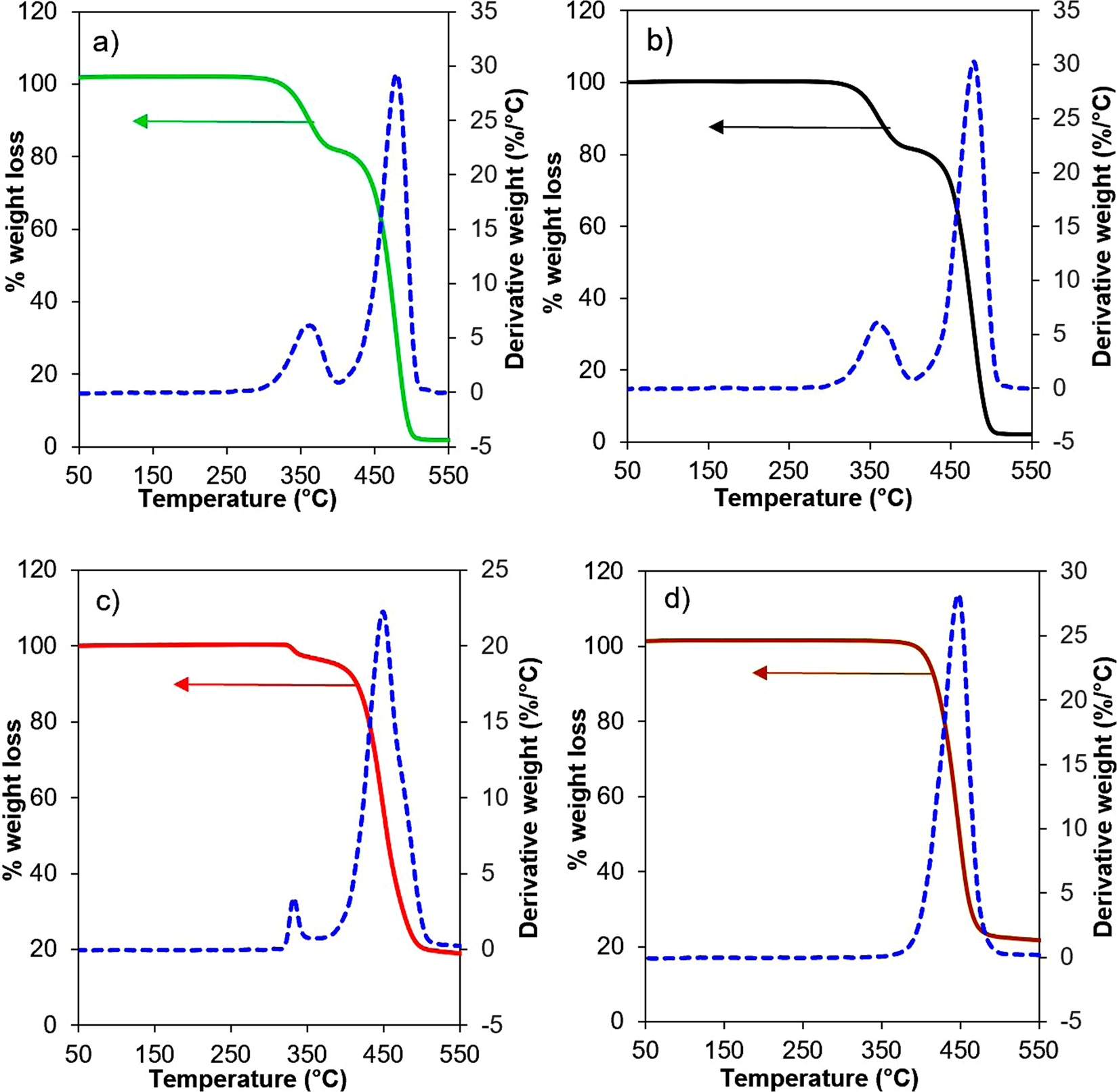

TGA/DTG curves of (a) U-EVA, (b) V-EVA, (c) UB and (d) VB over a temperature range of 50–550 °C heated at a constant heating rate of 15 °C.min−1 under a N2 atmosphere with a flow rate of 50 mL.min−1.
