Figure 2
From: Segmenting Mechanomyography Measures of Muscle Activity Phases Using Inertial Data

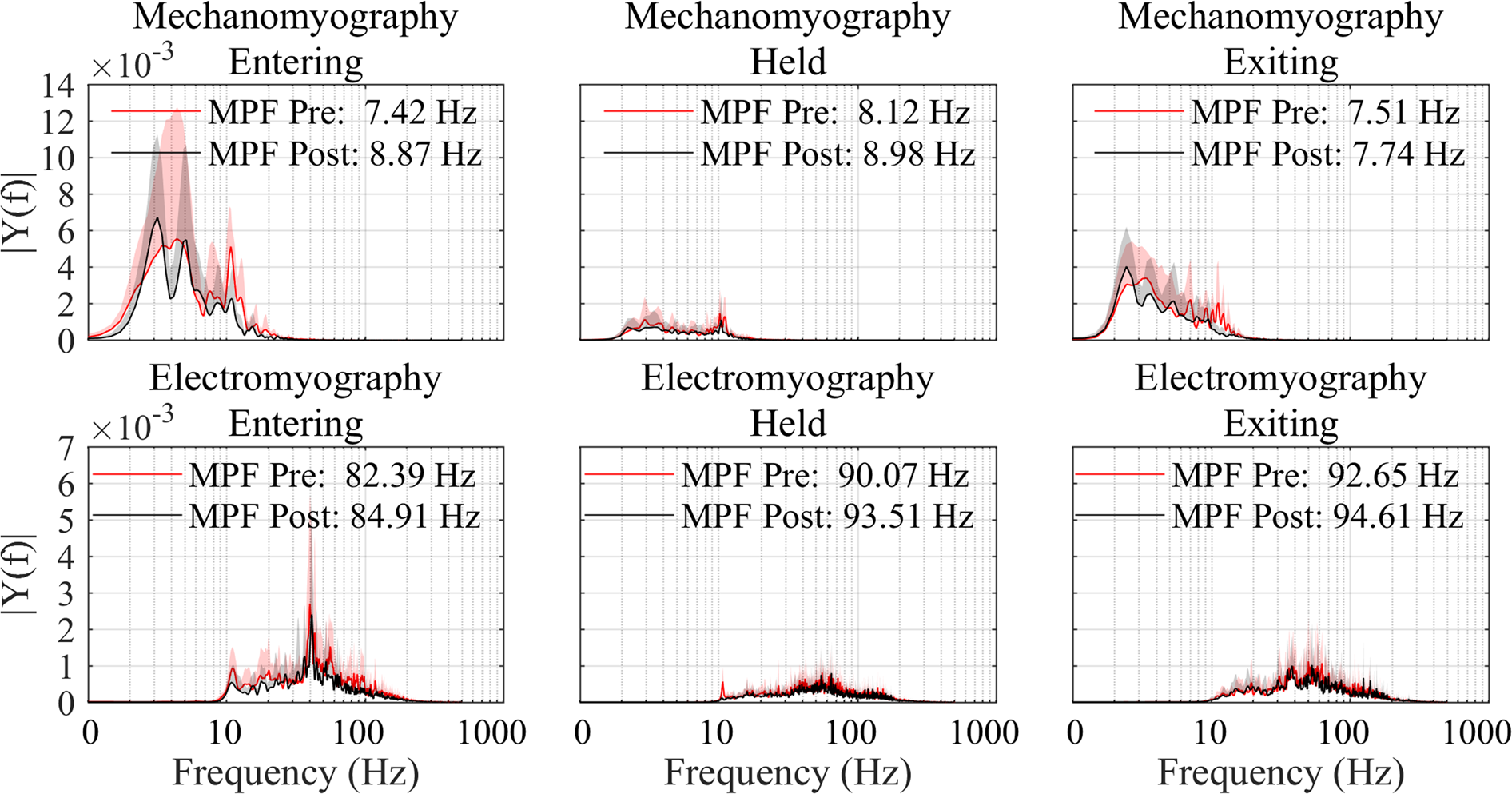

Grouped participant data showing comparison of pre (red) and post-exertion (black) MPF results for MMG (top row) and EMG (bottom row). Data have been divided into entering the squat (left column), holding the squat (middle column), and exiting the squat (right column). Standard deviation is plotted as a shaded envelope.
