Figure 6
From: Segmenting Mechanomyography Measures of Muscle Activity Phases Using Inertial Data

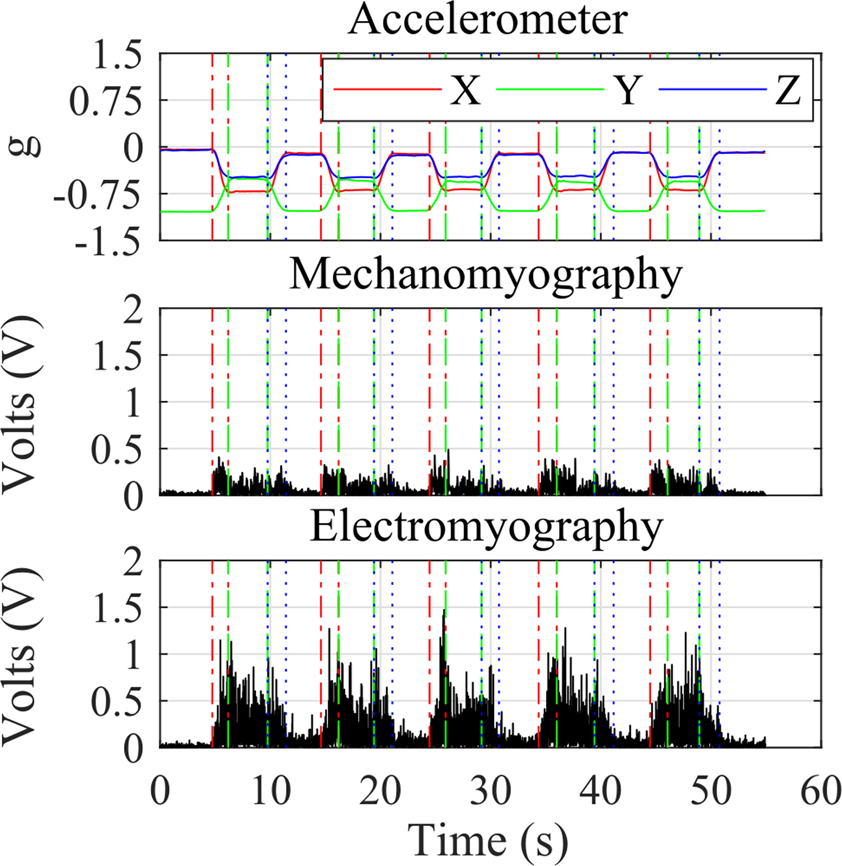

Example of muscle phase segmentation using accelerometer data from stages one and three of the exertion trial (figure showing data from participant 5, pre-exertion/stage one). Each repetition was detected and the start and stop points were segmented for entering (red dot-dashed line), held (green dashed line), and exiting (blue dotted line) the squat.
