Figure 6
From: Simulation of tight fluid flow with the consideration of capillarity and stress-change effect

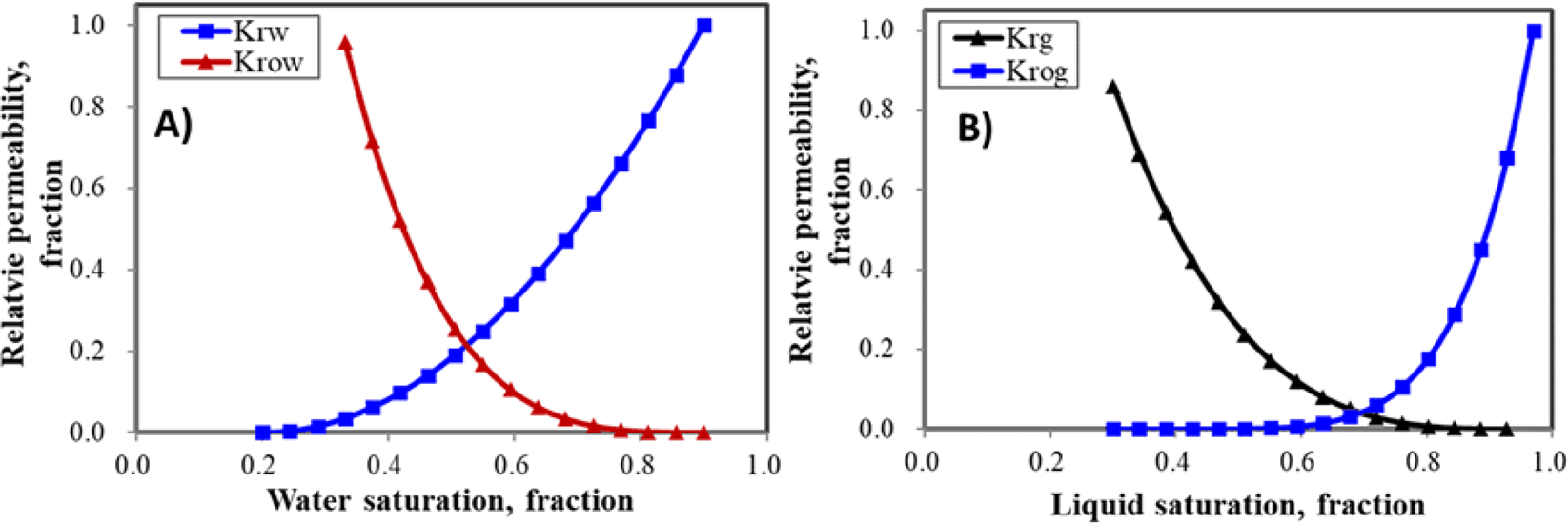

Relative permeability curves. (A) Water-oil relative permeability curve. (B) Liquid-gas relative permeability curve.
