Figure 3
From: Madden–Julian Oscillation Enhances Phytoplankton Biomass in the Maritime Continent

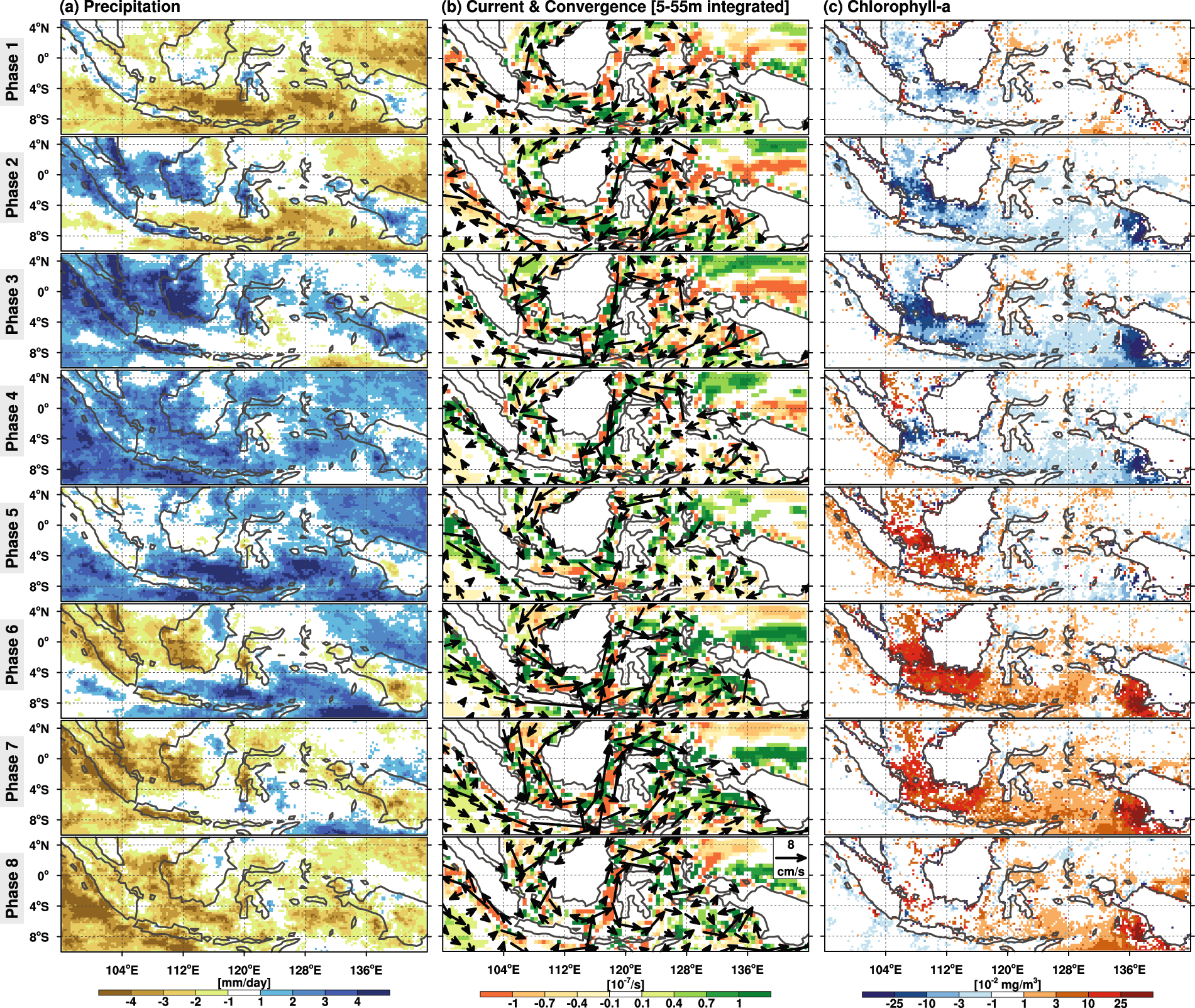

Variable anomalies associated with the eight MJO phases: (a) surface precipitation; (b) surface-water convergence (shading) overlaid with ocean surface currents (vectors); and (c) Chl concentration. Positive (negative) values indicate evidence of enhanced (suppressed) variables during the given phase. Only patterns significant at the 0.05 level are plotted. Surface-water convergence and surface currents in (b) are an integrated value over 5–55 meters. This figure was created using the NCAR Command Language (Version 6.3.0) [Software] (2018). Boulder, Colorado: UCAR/NCAR/CISL/TDD. https://doi.org/10.5065/D6WD3XH5.
