From: Stress transfer patterns and local seismicity related to reservoir water-level variations. A case study in central Costa Rica

Figure 1

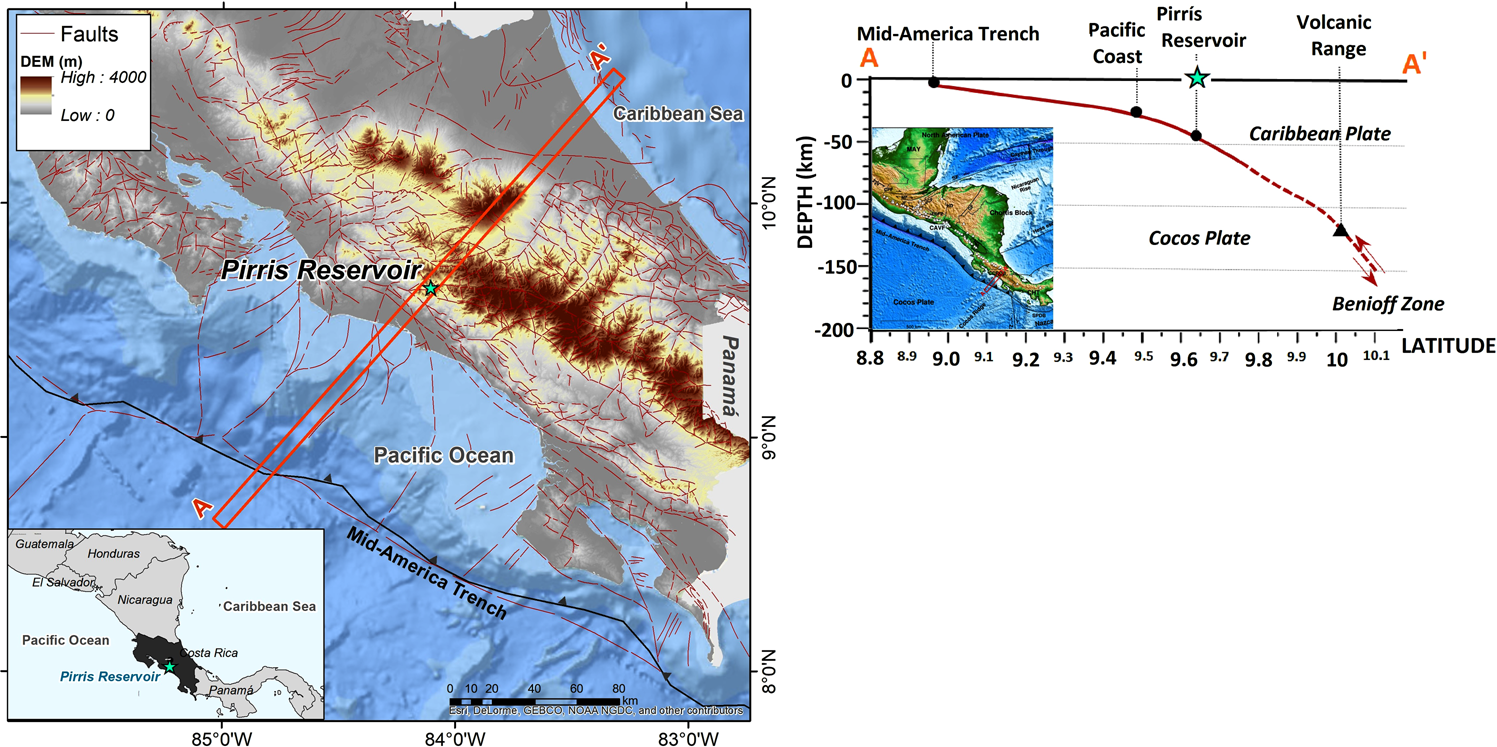

Location of the Pirrís reservoir with a national tectonic view of the Central America margin. This figure was generated by using the ESRI software, ArcGIS for desktop, version 10.3.1. (http://www.esri.com/).Source of the base map:Image of Esri, DeLorme, GEBCO, NOAA NGDC and other contributors. A profile of the subduction zone is included at the right side of the figure.
