From: Stress transfer patterns and local seismicity related to reservoir water-level variations. A case study in central Costa Rica

Figure 5

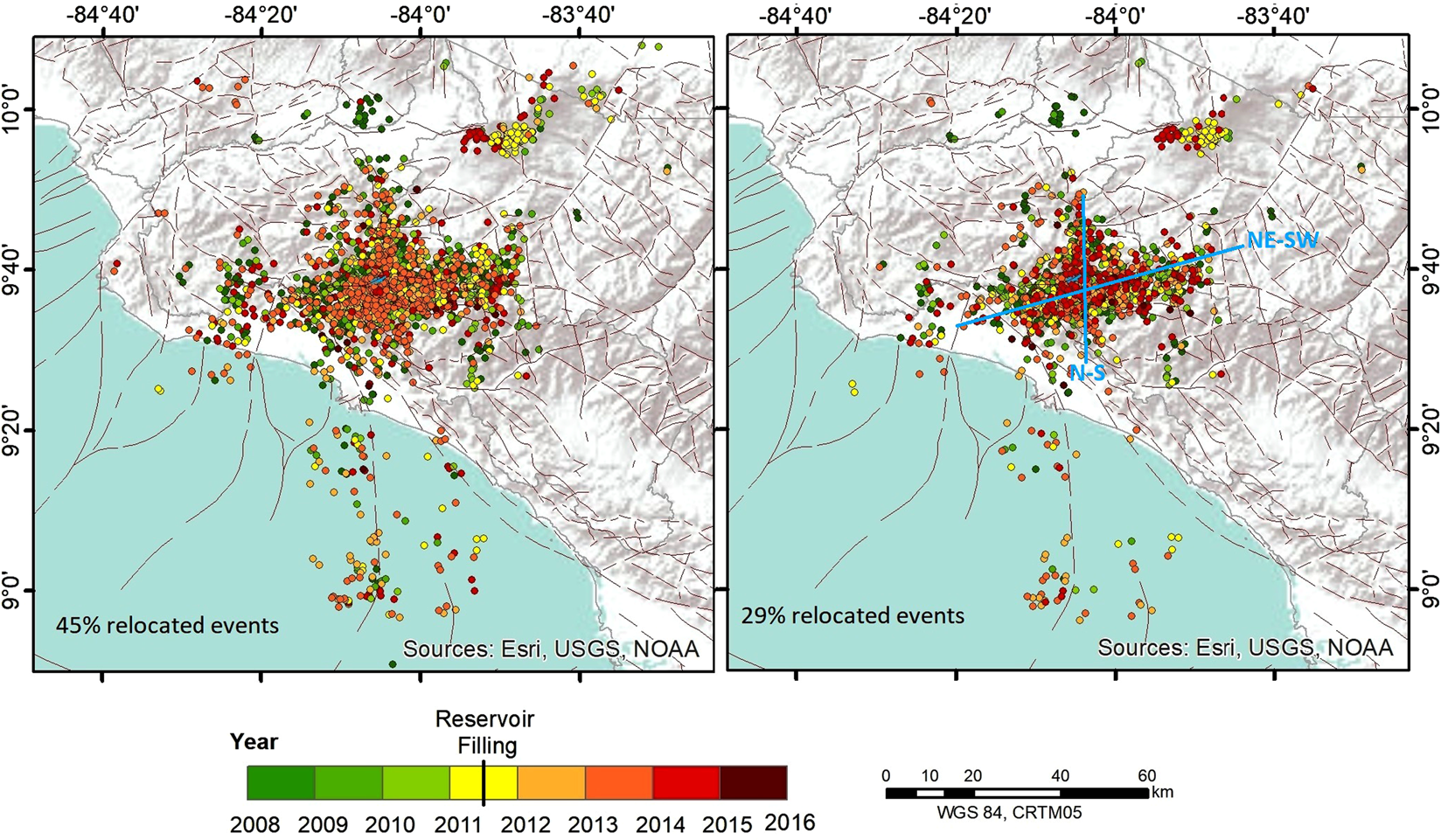

Epicentral distribution for the relocated events showing: a first relocation (left panel) in which 45% of events are relocated; and a second relocation with the 29% of events relocated. In the latter case, two seismicity alignments are more clearly noticeable. This figure was generated by using the ESRI software, ArcGIS for desktop, version 10.3.1. (http://www.esri.com/). Source of the base map: Image of Esri, USGS, NOAA.
