Figure 3
From: Eutectic modification by ternary compound cluster formation in Al-Si alloys

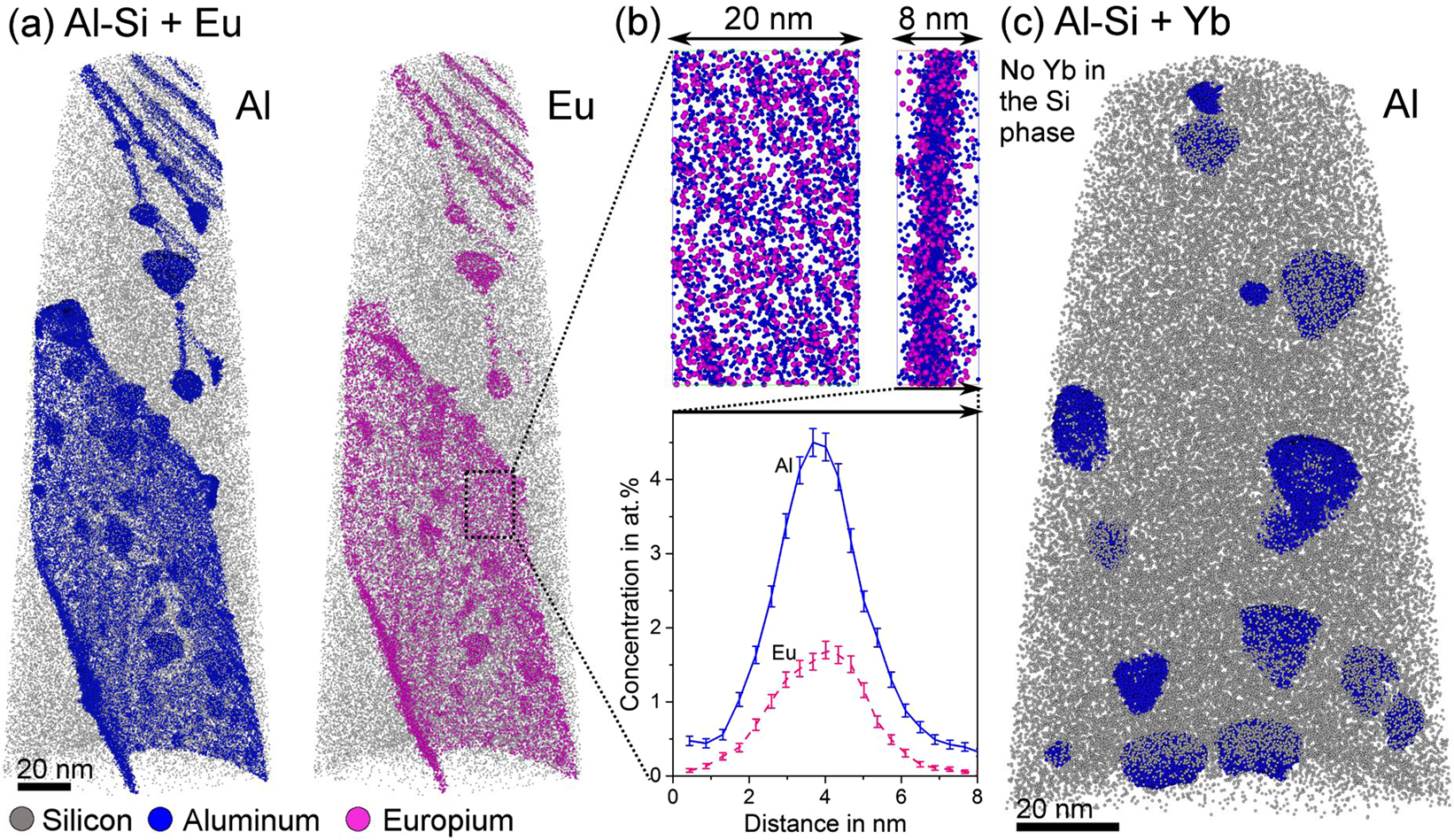

APT comparison of the solute distribution in Si. (a) Alloy modified by Eu presenting rod-like, planar and round clusters, all of them containing Al and Eu; (b) inset of the planar atomic clustering with a one-dimensional concentration profile across the segregation plane. (c) Alloy with Yb addition presenting only Al rounded clusters in Si. No Yb peaks were detected in the mass spectrum of the Si phase.
