Figure 4
From: Eutectic modification by ternary compound cluster formation in Al-Si alloys

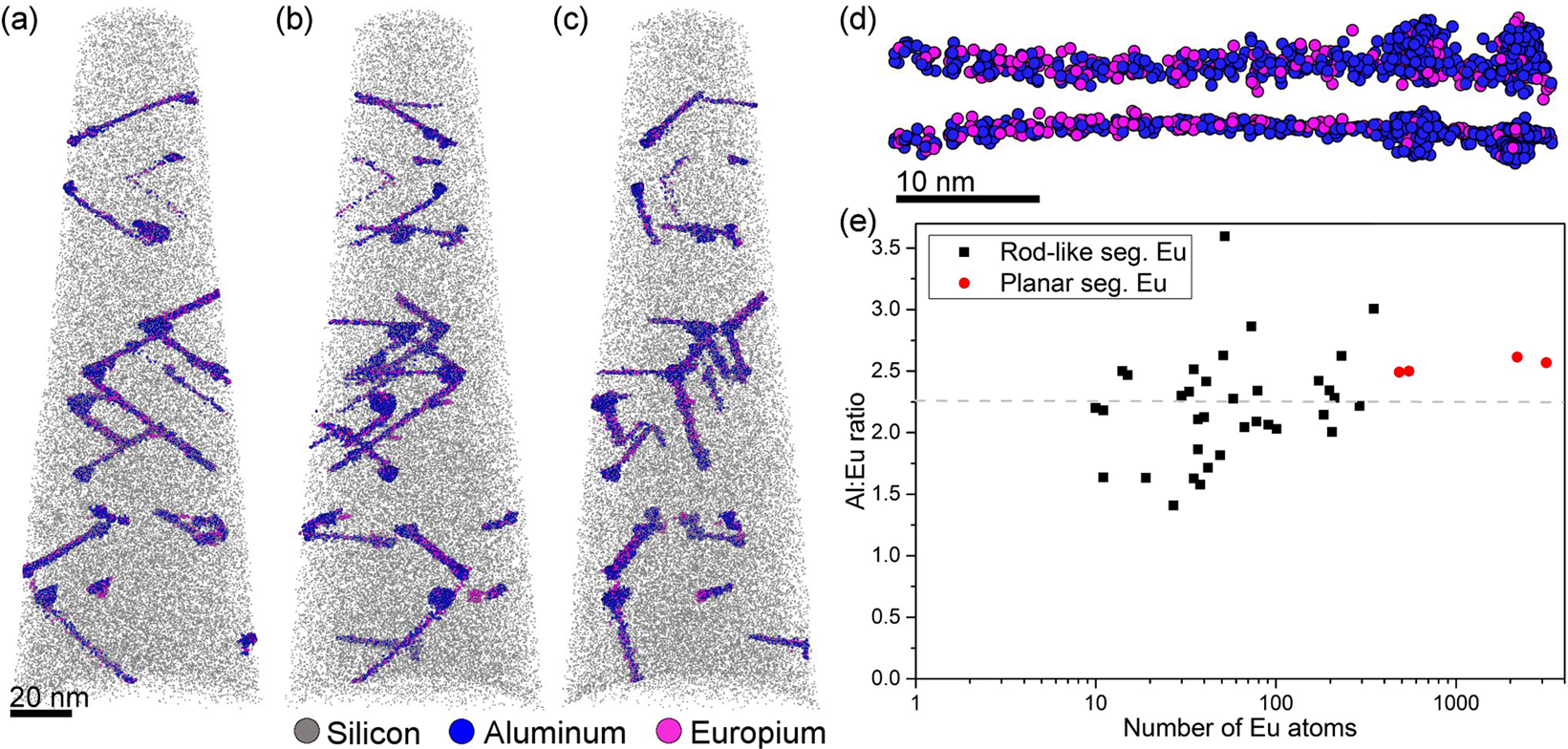

APT analysis of eutectic Si. (a), (b), and (c) are views of the same specimen at different rotation angles showing the scaffold of rod-like segregations in the Si lattice. (d) Shows one isolated rod-like segregation viewed from the top and the side. (e) Al:Eu ratios as a function of the number of Eu-atoms in each of the 39 clusters (35 rod-like and 4 planar).
