Figure 4

From: Facile synthesis of ternary graphene nanocomposites with doped metal oxide and conductive polymers as electrode materials for high performance supercapacitors

Figure 4

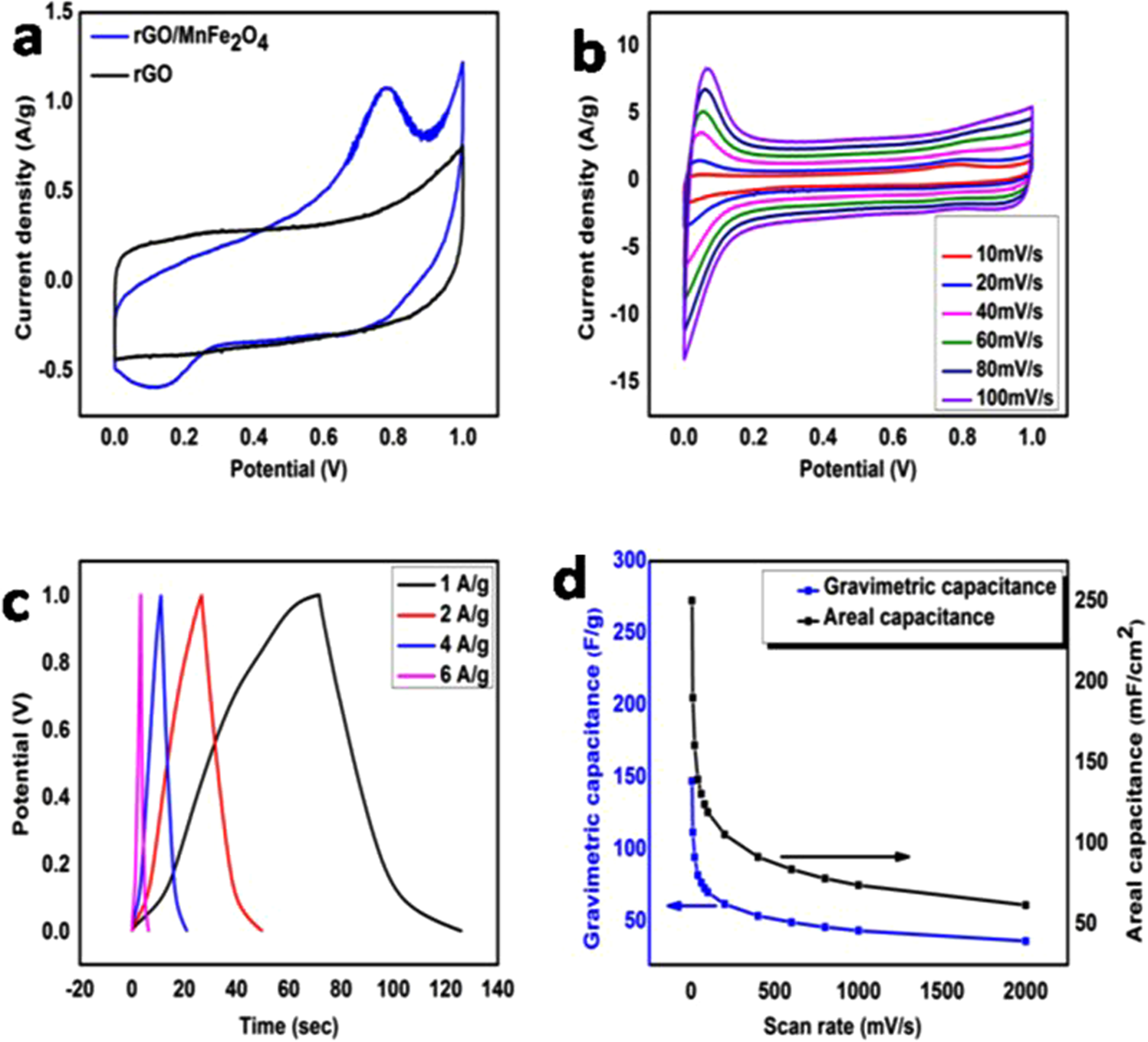

(a) CV curves of rGO and rGO/MnFe2O4 nanocomposite at 5 mVs−1. (b) CV curves of rGO/MnFe2O4 nanocomposite at different scan rates (10–100mVs−1). (c) CD curves of rGO/MnFe2O4 at different current density (1 Ag−1, 2 Ag−1, 4 Ag−1 and 6 Ag−1). (d) Gravimetric and areal capacitances of rGO/MnFe2O4 at different scan rates (10–2000mVs−1).
