Figure 8
From: Strong and ductile AZ31 Mg alloy with a layered bimodal structure

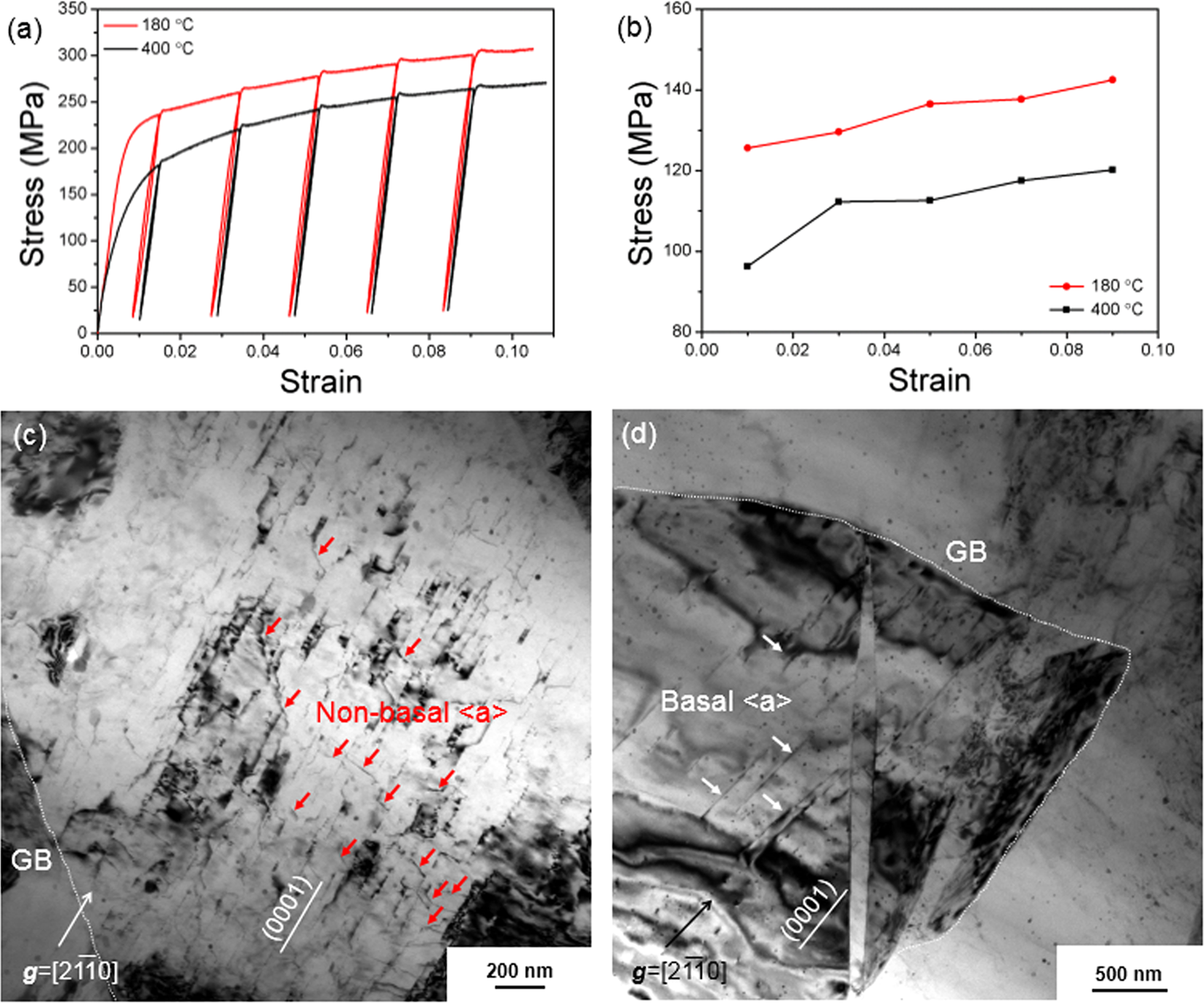

(a) Loading-unloading-reloading tensile tests of the 180 °C and 400 °C annealed ARB samples; (b) back-stresses determined from the curves in (a). (c) and (d) TEM images showing the microstructures for the 180 °C (c) and 400 °C (d) annealed and tensile-tested ARB samples.
